LW17-35KV

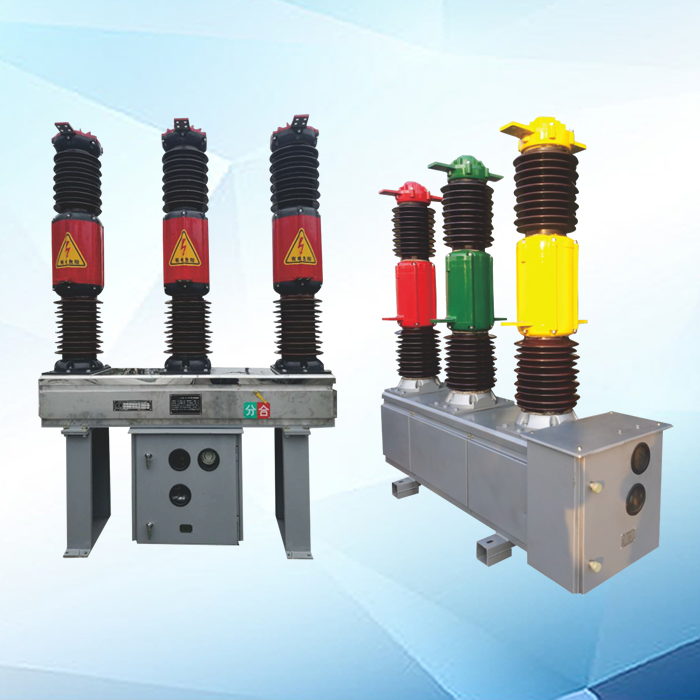

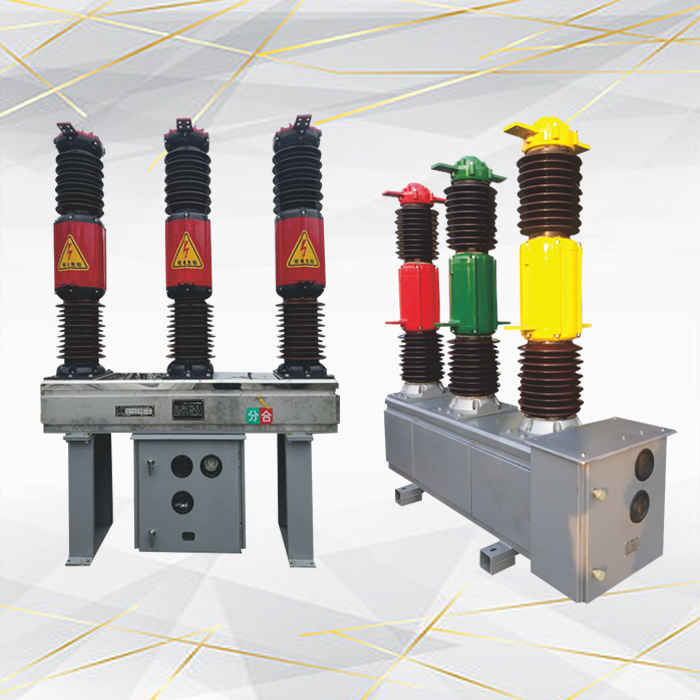

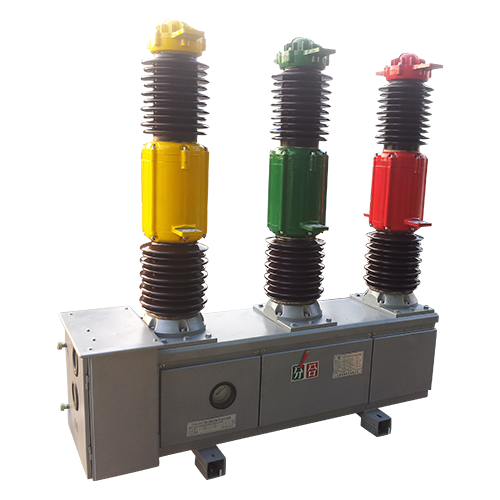

LW16-40.5 is an outdoor three-phase AC high voltage SF6 circuit breaker designed for 40.5kV (35kV class) power transmission and distribution systems. It uses SF6 gas as insulation and arc extinguishing medium, equipped with spring operating mechanism, and meets IEC and GB standards.
This product is mainly used in power substations, industrial and mining enterprises, power plants and distribution networks to control and protect circuits. It can reliably switch rated load current and short-circuit current, with stable performance, long service life, low gas leakage rate and easy maintenance.
It is suitable for outdoor environments and can be widely used in power grid transformation, new construction and renovation projects of 35kV / 40.5kV power systems.
This product is mainly used in power substations, industrial and mining enterprises, power plants and distribution networks to control and protect circuits. It can reliably switch rated load current and short-circuit current, with stable performance, long service life, low gas leakage rate and easy maintenance.
It is suitable for outdoor environments and can be widely used in power grid transformation, new construction and renovation projects of 35kV / 40.5kV power systems.
Product Details
LW17A-126/T3150-31.5 Outdoor High-voltage Sulfur Hexafluoride Circuit Breaker LW17A-126/T3150-31.5 Outdoor High-voltage Sulfur Hexafluoride Circuit Breaker is designed based on the digestion and absorption of ABB's introduced technology. It uses sulfur hexafluoride gas as the main insulation and arc extinguishing medium and is equipped with a highly reliable spring operating mechanism. It is mainly used to complete the switching of normal load current, cut off fault current and convert power lines, and realize the control and protection of 126kV power system. The main technical parameters are as follows: l Rated voltage: 126kV l Rated current: 3150A l Rated short-time breaking current: 34.5kA (duration: 4s) l
Rated short-circuit closing current (peak): 80kA l Rated power frequency withstand voltage: 230kV l Rated lightning impulse withstand voltage: 550kV l Rated SF6 gas pressure (gauge pressure at 20℃) 0.5 MPa
Rated short-circuit closing current (peak): 80kA l Rated power frequency withstand voltage: 230kV l Rated lightning impulse withstand voltage: 550kV l Rated SF6 gas pressure (gauge pressure at 20℃) 0.5 MPa
