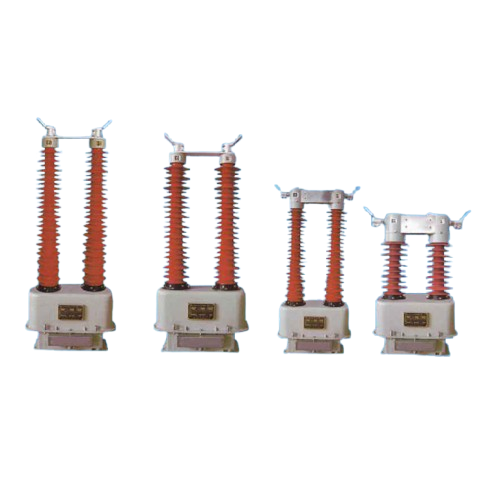

LRGBJ-35/66/110/220
Adopting mature oil-paper insulation structure and high-purity insulating oil, the LRGBJ series features uniform electric field distribution, low dielectric loss and excellent heat dissipation performance. Equipped with high-quality low-loss magnetic cores, the transformers maintain stable current transformation ratio and ultra-low measurement error, effectively resisting strong electromagnetic interference in complex power grid operating environments.
Designed with a fully sealed integrated structure and professional pressure protection structure, the LRGBJ series completely avoids oil leakage, moisture and dust intrusion. The high-strength anti-fouling and multi-layer anti-corrosion porcelain sleeve enables stable all-weather operation in harsh scenarios, including high altitude, low temperature, desert and coastal salt fog polluted areas.
Optimized with scientific winding layout and balanced structural design, LRGBJ-35/66/110/220 current transformers feature strong overload resistance and low operating noise. With multiple precision grade options and reliable structural stability, the series boasts long service life and low daily maintenance, effectively reducing operational and maintenance costs for power grid construction and renovation projects.
As versatile core equipment for medium and ultra-high voltage power engineering, the LRGBJ series outdoor oil immersed current transformers deliver outstanding measurement precision and operational stability. We provide global customers with factory direct supply, complete certification documents and professional one-stop after-sales service for various power project demands.
Product Details

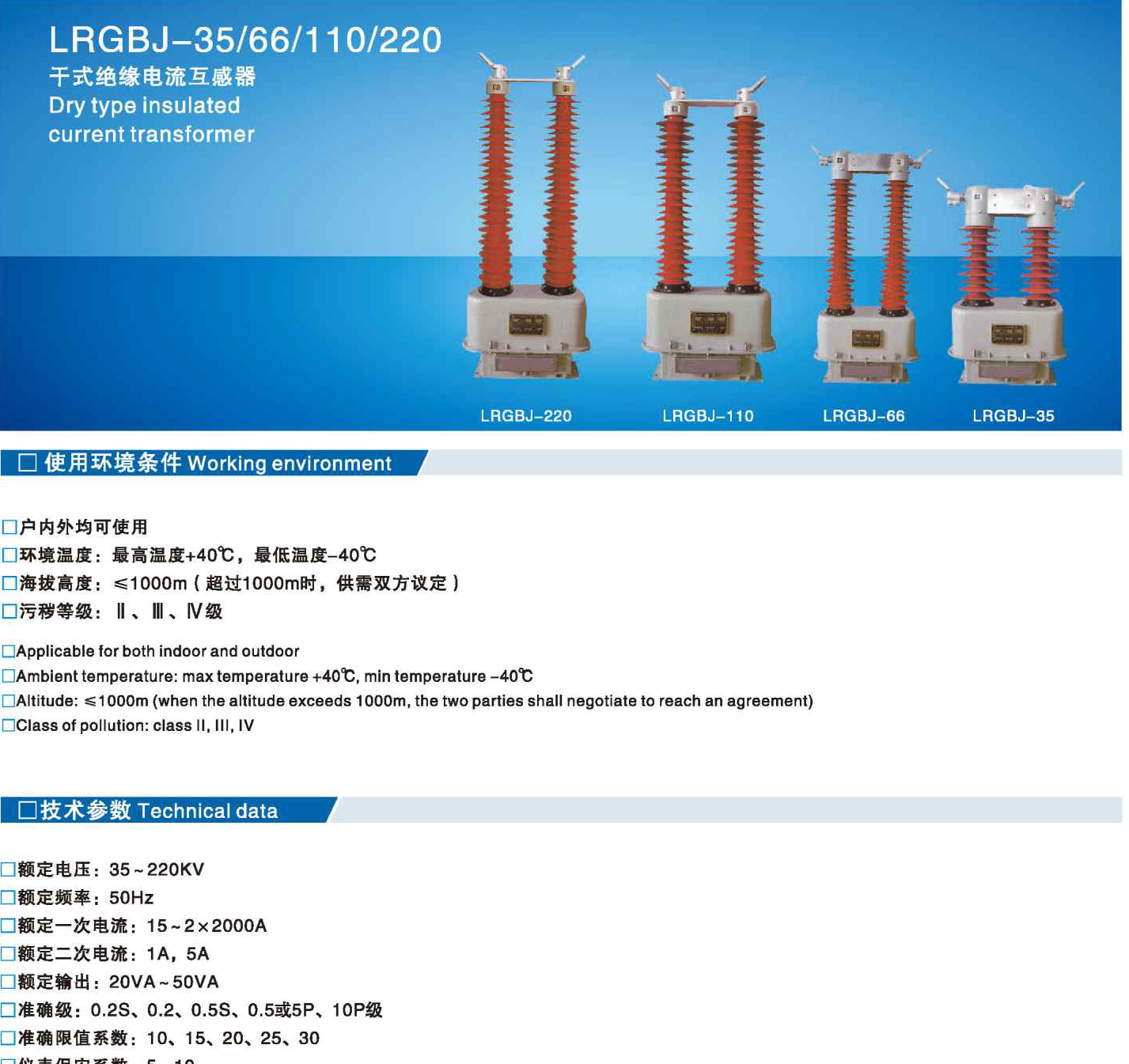

Dryt ypei nsulated current transformer
□Working environment
□Applicable for both indoor and outdoor
□Ambient temperature:max temperature +40℃,min temperature-40℃
□Altitude:≤1000m(when the altitude exceeds 1000m,the two parties shall negotiate to reach an agreement)
□Class of pollution:class II,III,IV

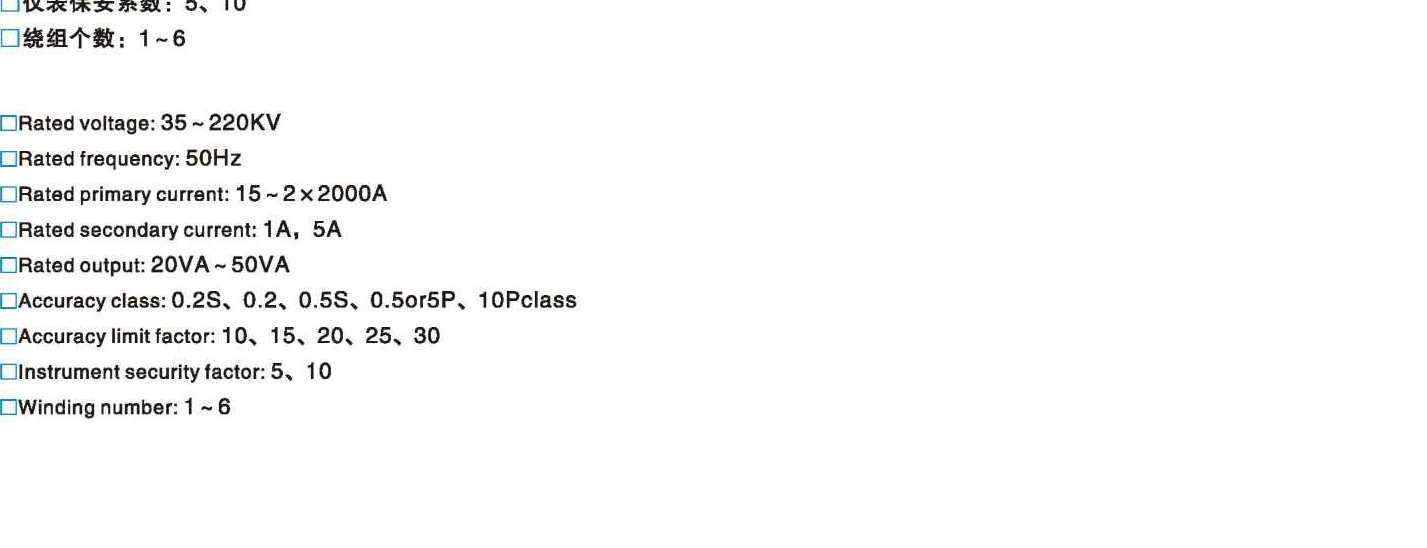

□Technical data
□Rated voltage:35~220KV
□Rated frequency:50Hz
□Rated primary current:15~2×2000A
□Rated secondary current:1A,5A
□Rated output:20VA~50VA
□Accuracy class:0.2S 、0.2 、0.5S 、0.5or5P 、10Pc lass
□Accuracy limit factor: 10 、15 、20 、25 、30
□Instrument security factor:5、10
□Winding number:1～6

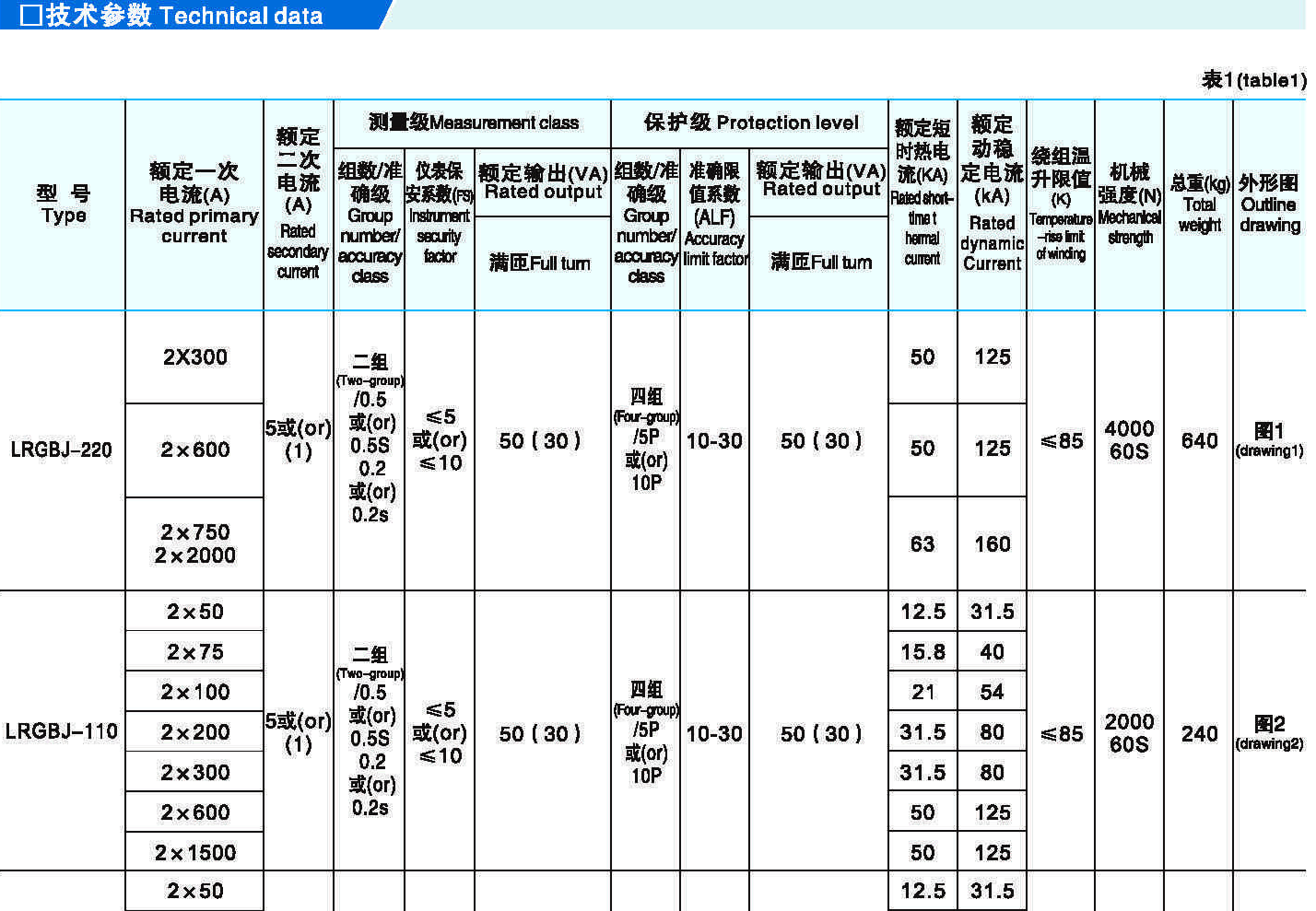

□Technical data
|
Type |
Rated primary Current(A) |
Rated secondary currert(A) |
Measurement class |
Protection level |
Fated shor- tmat hemal Gunent(KA) |
Rated dynamic Current(KA) |
Terperature -ise imt odf winding(K) |
Mechankcel strength(N) |
Total weight(KG) |
Outline drawing |
||||
|
Group number Bcurecy dass |
Instument sBcurity factor(FS) |
Rated output(VA) |
Group number/ accuracy cass |
Accuracy limit factor(ALF) |
Rated output(VA) |
|||||||||
|
Full tum |
Full um |
|||||||||||||
|
LRGBJ-220 |
2X300 |
5(or) (1) |
{Two-group /0.5 (or) 0.5S 0.2 或(or) 0.2s |
) ≤5 (or) ≤10 |
50(30) |
(Four-goup) /5P 或(or) 10P |
10-30 |
50(30) |
50 |
125 |
≤85 |
4000 60S |
640 |
(drawing1) |
|
2×600 |
50 |
125 |
||||||||||||
|
2×750 2×2000 |
63 |
160 |
||||||||||||
|
LRGBJ-110 |
2×50 |
5(or) (1) |
{Two-group /0.5 (or) 0.5S 0.2 (or) 0.2s |
) ≤5 或(or) ≤10 |
50(30) |
(Four-goup) /5P (or) 10P |
10-30 |
50(30) |
12.5 |
31.5 |
≤85 |
2000 60S |
240 |
(drawing2) |
|
2×75 |
15.8 |
40 |
||||||||||||
|
2×100 |
21 |
54 |
||||||||||||
|
2×200 |
31.5 |
80 |
||||||||||||
|
2×300 |
31.5 |
80 |
||||||||||||
|
2×600 |
50 |
125 |
||||||||||||
|
2×1500 |
50 |
125 |
||||||||||||
|
LRGBJ-66 |
2×50 |
5(or) (1) |
{Two-group) /0.5 (or) 0.5S 0.2 (or) 0.2s |
≤5 或(or) ≤10 |
50(30) |
Four-Three) /5P (or) 10P |
10-30 |
50(30) |
12.5 |
31.5 |
≤85 |
2000 60S |
200 |
(drawing3) |
|
2×75 |
15.8 |
40 |
||||||||||||
|
2×100 |
21 |
54 |
||||||||||||
|
2×200 |
31.5 |
80 |
||||||||||||
|
2×300 |
31.5 |
80 |
||||||||||||
|
2×600 |
50 |
125 |
||||||||||||
|
2×1500 |
50 |
125 |
||||||||||||
|
LRGBJ-35 |
5~2×50 |
5(or) (1) |
Two-group) /0.5 (or) 0.5S 0.2 (or) 0.2s |
≤5 或(or) ≤10 |
40(20) |
(Two-group) /5P (or) 10P |
10-30 |
40(20) |
100 l1n |
250 I1n |
≤85 |
2000 60S |
90 |
(drawlng4) |
|
15、250 |
125 l1n |
315 l1n |
||||||||||||
|
2×300 |
31.5 |
80 |
||||||||||||
|
600、1250 |
40 |
100 |
||||||||||||
|
2×750-2×1500 |
50 |
125 |
||||||||||||
Note:digits in()of the output column in the table represents the rated output at 1A
|

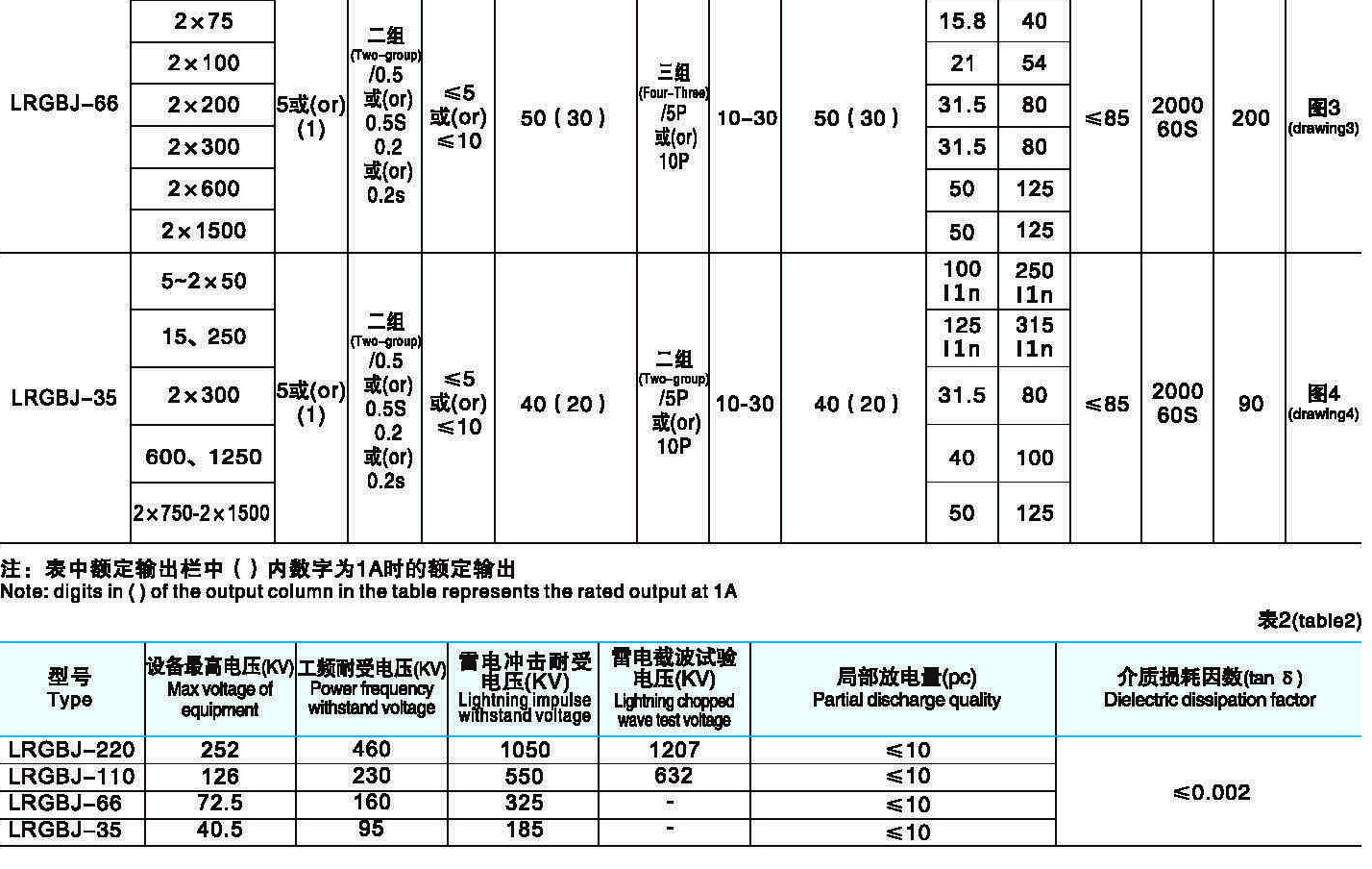

Type |
Maxvoltage of Equipment(kv) |
Power frequency withstand voltage(kv) |
Lightning impulse withstand voltage(kv) |
Lightning chopped wave test voltage(kv) |
Partial discharge quality(pc) |
Dielectric dissipation factor |
|
LRGBJ-220 |
252 |
460 |
1050 |
1207 |
≤10 |
≤0.002 |
|
LRGBJ-110 |
126 |
230 |
550 |
632 |
≤10 |
|
|
LRGBJ-66 |
72.5 |
160 |
325 |
|
≤10 |
|
|
LRGBJ-35 |
40.5 |
95 |
185 |
|
≤10 |

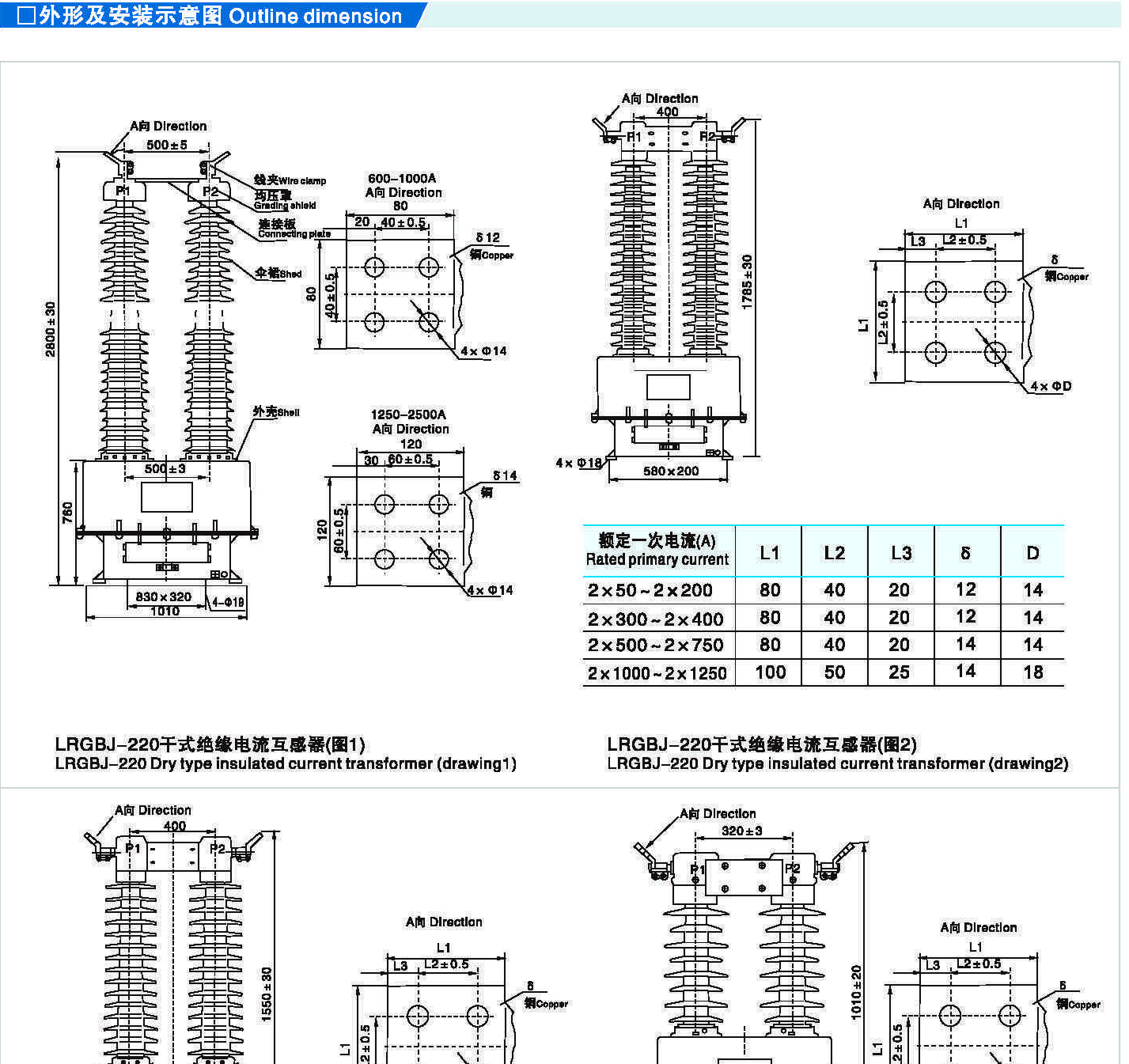

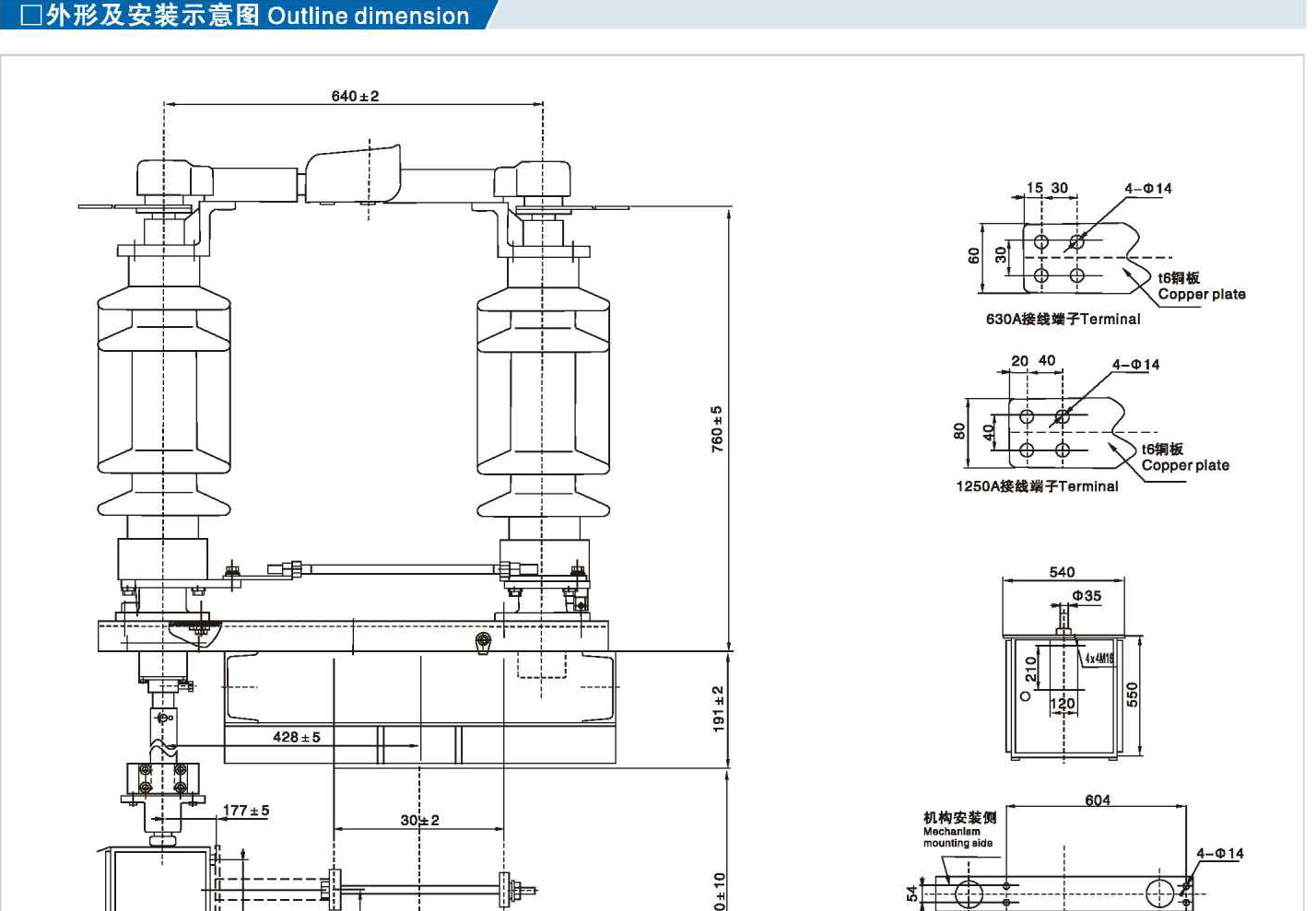

□Outline dimension
□Outline dimension

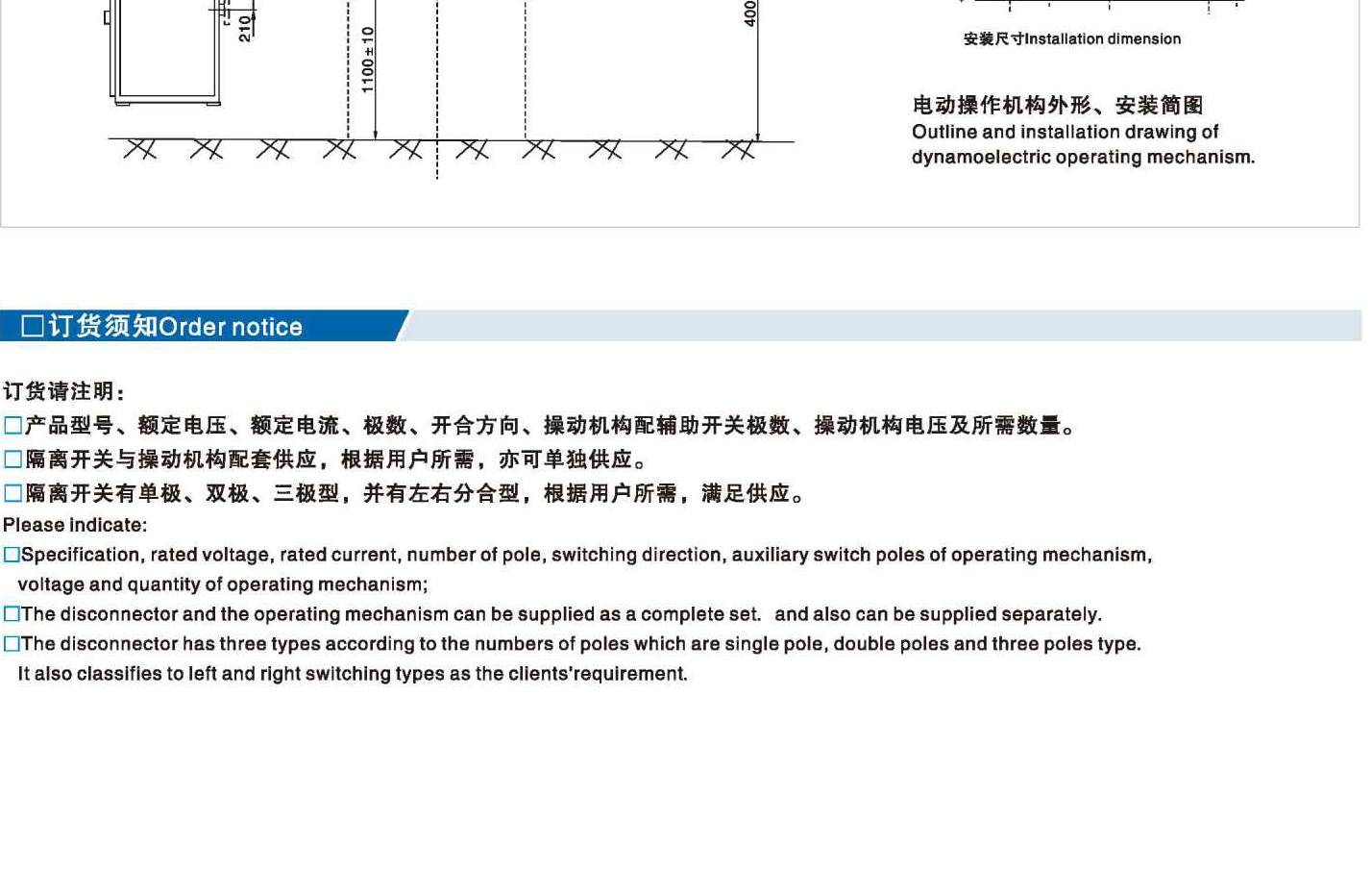

□Order notice
Please indicate:
□Specification,rated voltage,rated current,number of pole, switching direction,auxiliary switch poles of operating mechanism, voltage and quantity of operating mechanism;
□The disconnector and the operating mechanism can be supplied as a complete set.and also can be supplied separately.
□T he disconnector has three types according to the numbers of poles which are single pole,double poles and three poles type. It also classifies to left and right switching types as the clients'requirement.
