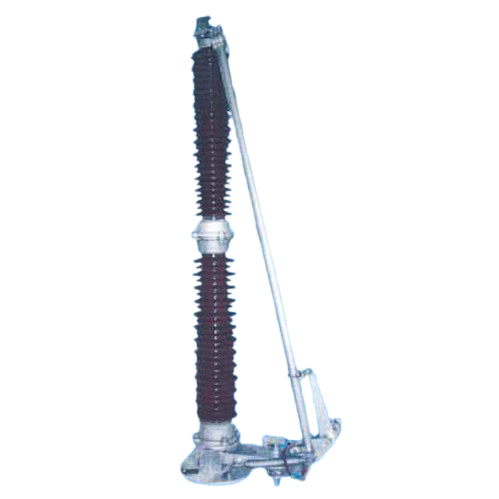

JW2-126/252(W)
Built with optimized structure and premium conductive parts, the JW2(W) series has low contact resistance and stable grounding performance, ensuring fast and reliable circuit grounding to protect equipment and operators during maintenance.
Equipped with anti-fouling insulators with extended creepage distance, this W-type anti-pollution earthing switch provides excellent insulation and anti-interference performance, adapting to coastal, high-altitude, humid and heavily polluted outdoor scenarios.
All metal components adopt hot-dip galvanized treatment for strong rust, oxidation and salt fog resistance. The outdoor-rated structure withstands harsh weather for stable all-weather operation.
With reliable transmission and interlock structure, the switch supports manual and electric operation. It features flexible switching, easy installation, high stability and low maintenance.
Serving as key safety grounding equipment for 126kV-252kV power grids, JW2(W) series earthing switches deliver stable performance and strong environmental adaptability. We offer factory direct supply, complete certifications and professional after-sales service worldwide.
Product Details
JW2-126/252(W)
Outdoor high voltage AC earthing switch

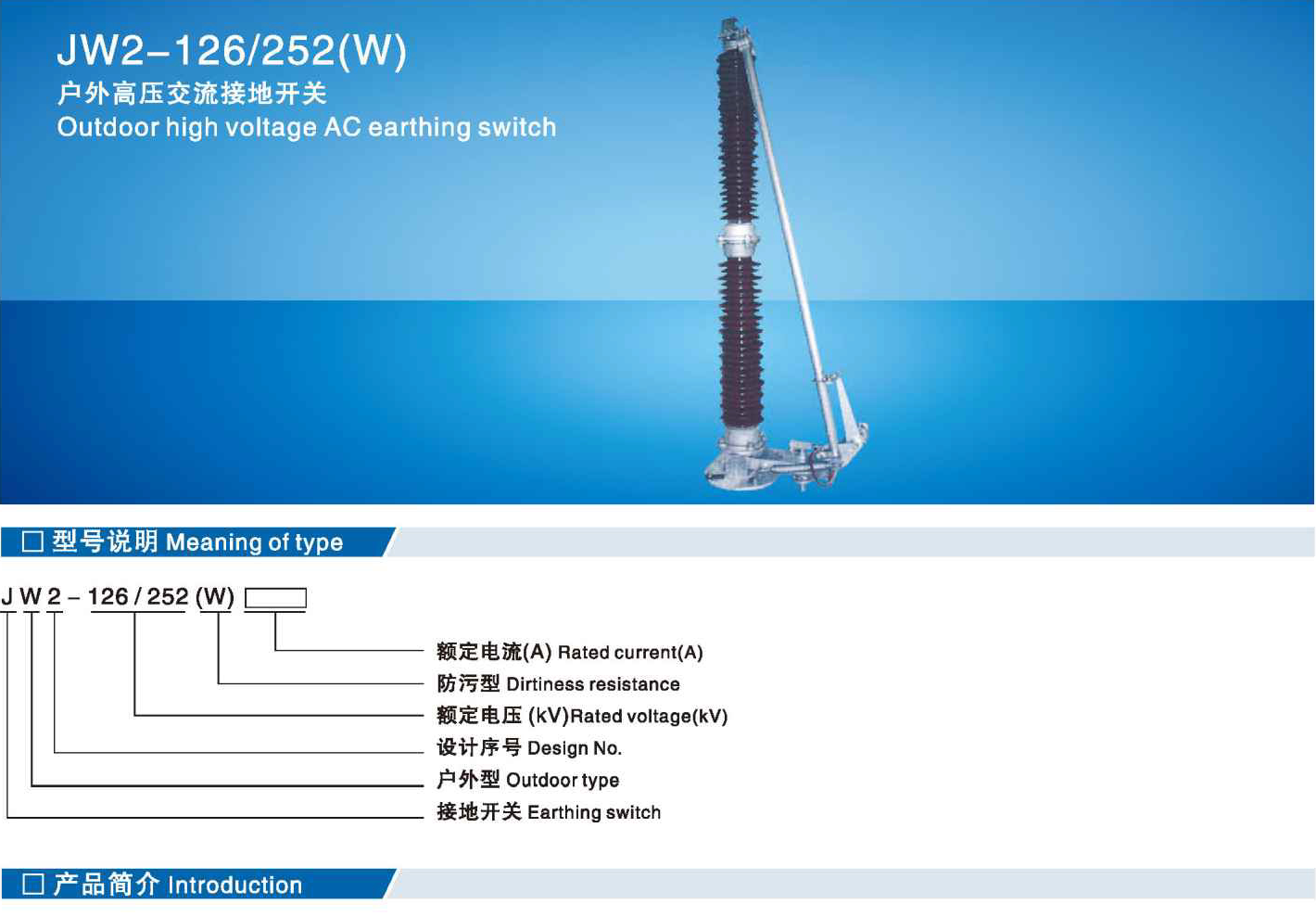

□ Meaning of type
□Introduction

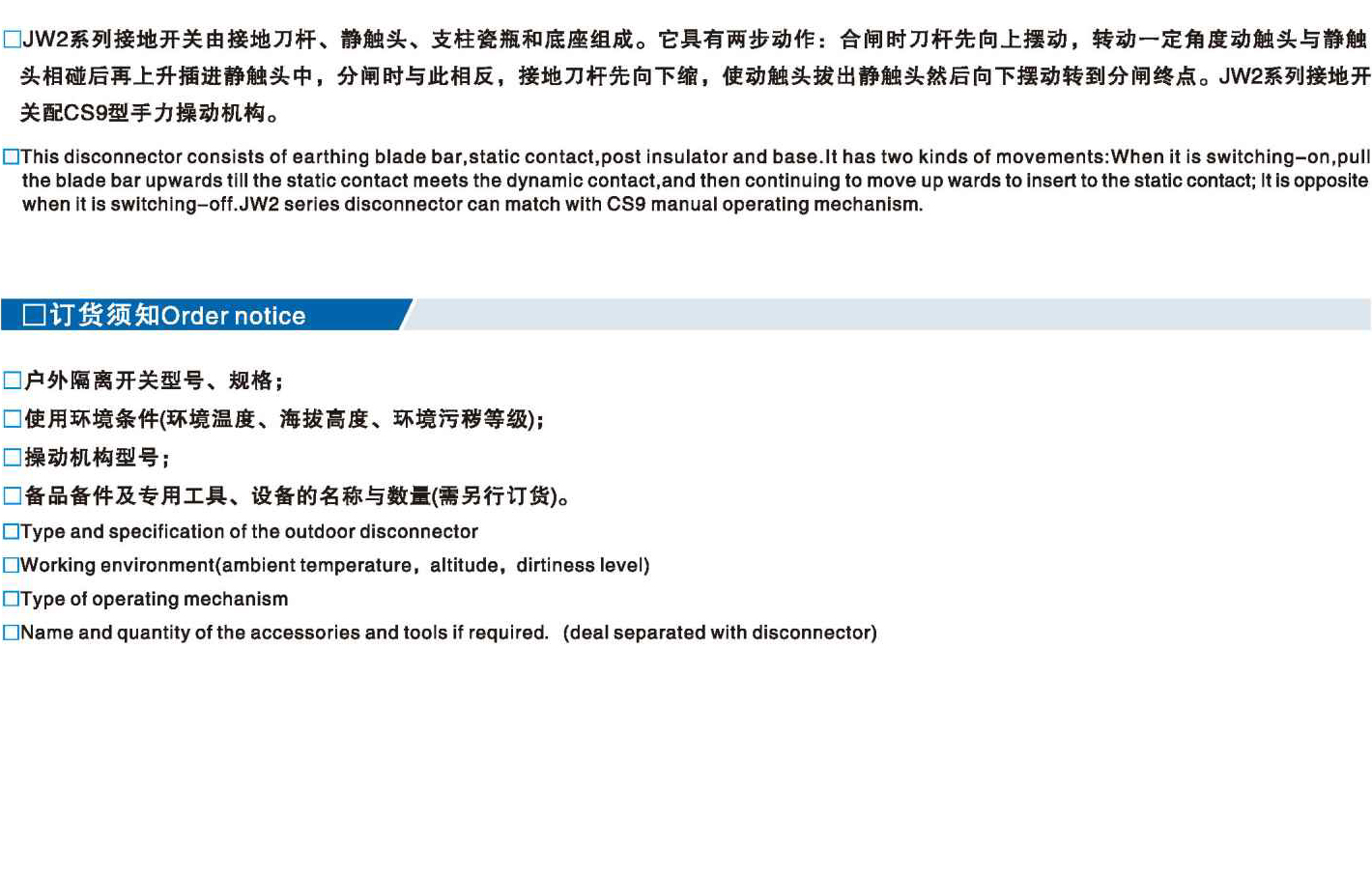

□This disconnector consists of earthing blade bar,static contact,post insulator and base.It has two kinds of movements:When it is switching-on,pull the blade bar upwards till the static contact meets the dynamic contact,and then continuing to move up wards to insert to the static contact;It is opposite when it is switching-off.JW2 series disconnector can match with CS9 manual operating mechanism.
□Order notice
□Type and specification of the outdoor disconnector
□ Working environment(ambient temperature,altitude,dirtiness level)
□Type of operating mechanism
□Name and quantity of the accessories and tools if required.(deal separated with disconnector)

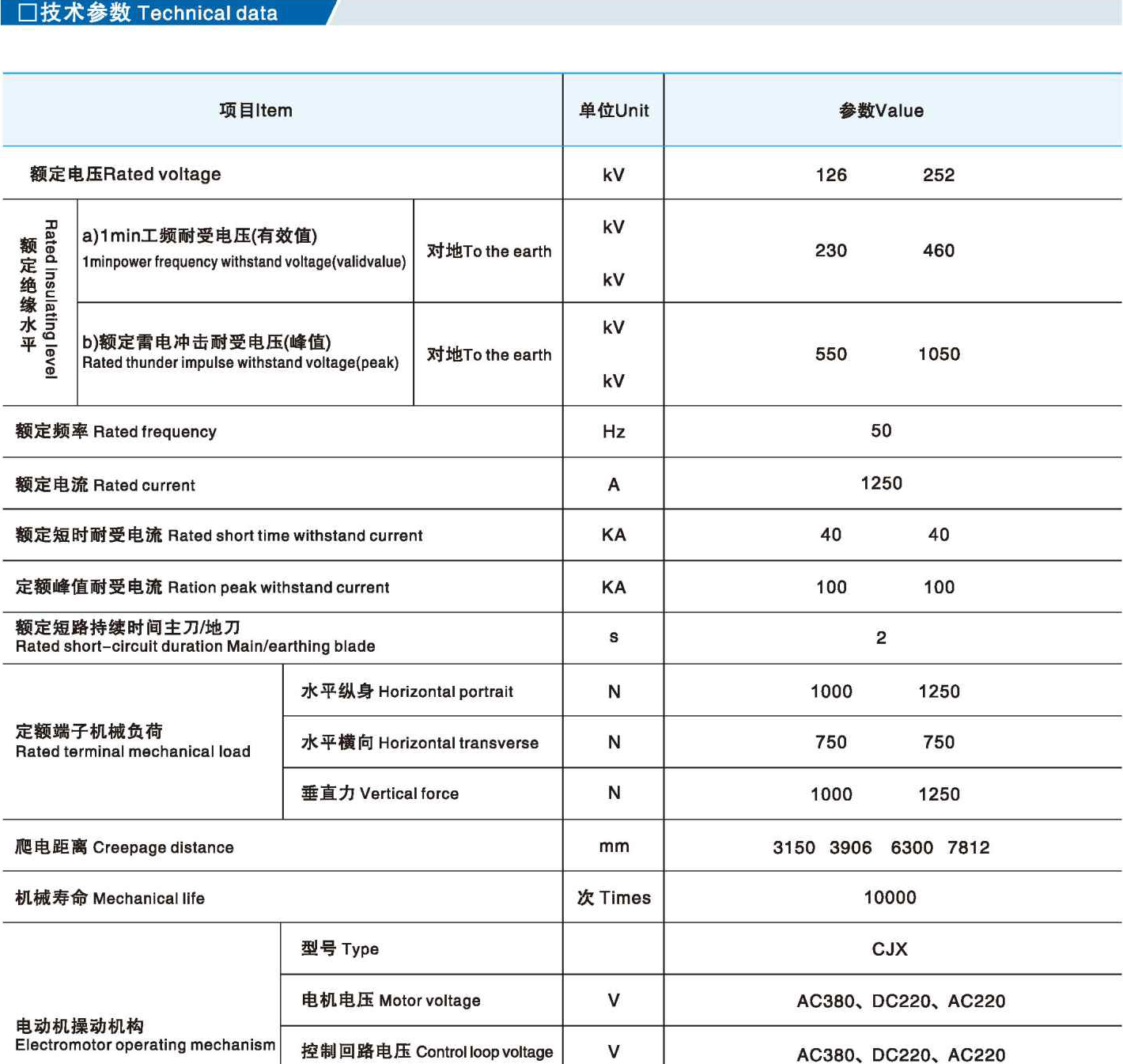

□Technical data
|
(A) Rated current ratio (tap current ratio) |
Class combination |
Accuracy class |
(VA) Rated output |
Accuracy limit factor |
(kA) Rated short-time themalcurent |
(kA) Rated dynamic stable current |
(kA) Rated insulation level |
porcelain bushing creepage distance(cm) 三 |
Oil weight/Total weight(kg) |
|
|
Full turn number |
tap |
|||||||||
|
2×600/5 (2×300/5) 2×750/5 (2×400/5) 2×800/5 (2×400/5) 2×1000/5 (2×500/5) 2×1200/5 (2×600/5) 2×1250/5 (2×750/5) |
P1/P2/P1/0.5(0.2) P1/P2/P1/P1/0.5(0.2) P1/P2/P1/P1/P1/0.5(0.2) P1/P2/P1/0.5/0.2 P1/P2/P1/P1/0.2S P1/P2/P1/P1/P10.2S |
5P 10P |
50 |
|
20 |
(5s) 21-42 (or)(3s) 31.5-63 |
55-110 (or) 80-160 |
252 / 395 / 950 |
410 |
365 / 1300 |
|
5P 10P |
50 |
25 |
|
|||||||
|
|
50 |
12.5 |
||||||||
|
0.5 |
50 |
40 |
|
550 |
||||||
|
0.2 |
50 |
40 (0.5class) |
|
|||||||
|
0.2S |
50 |
40 (0.5class) |
|
630 |
||||||

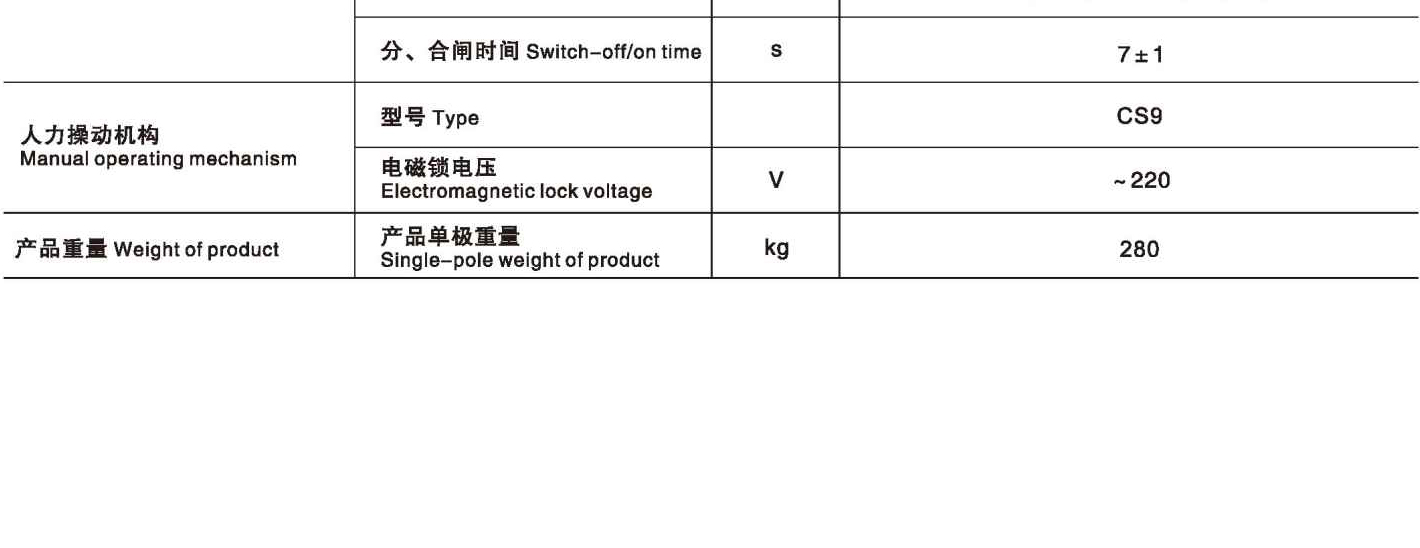

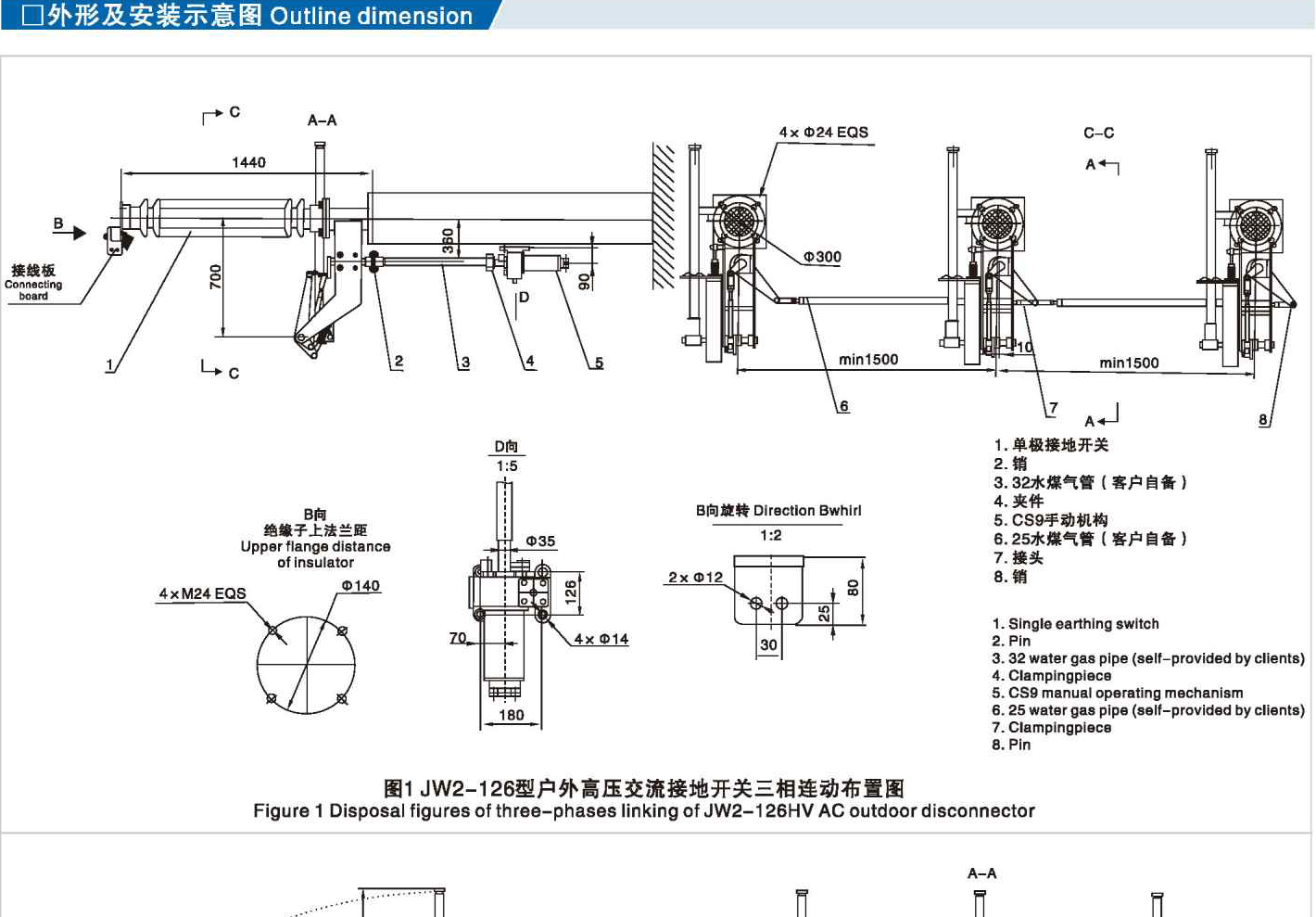

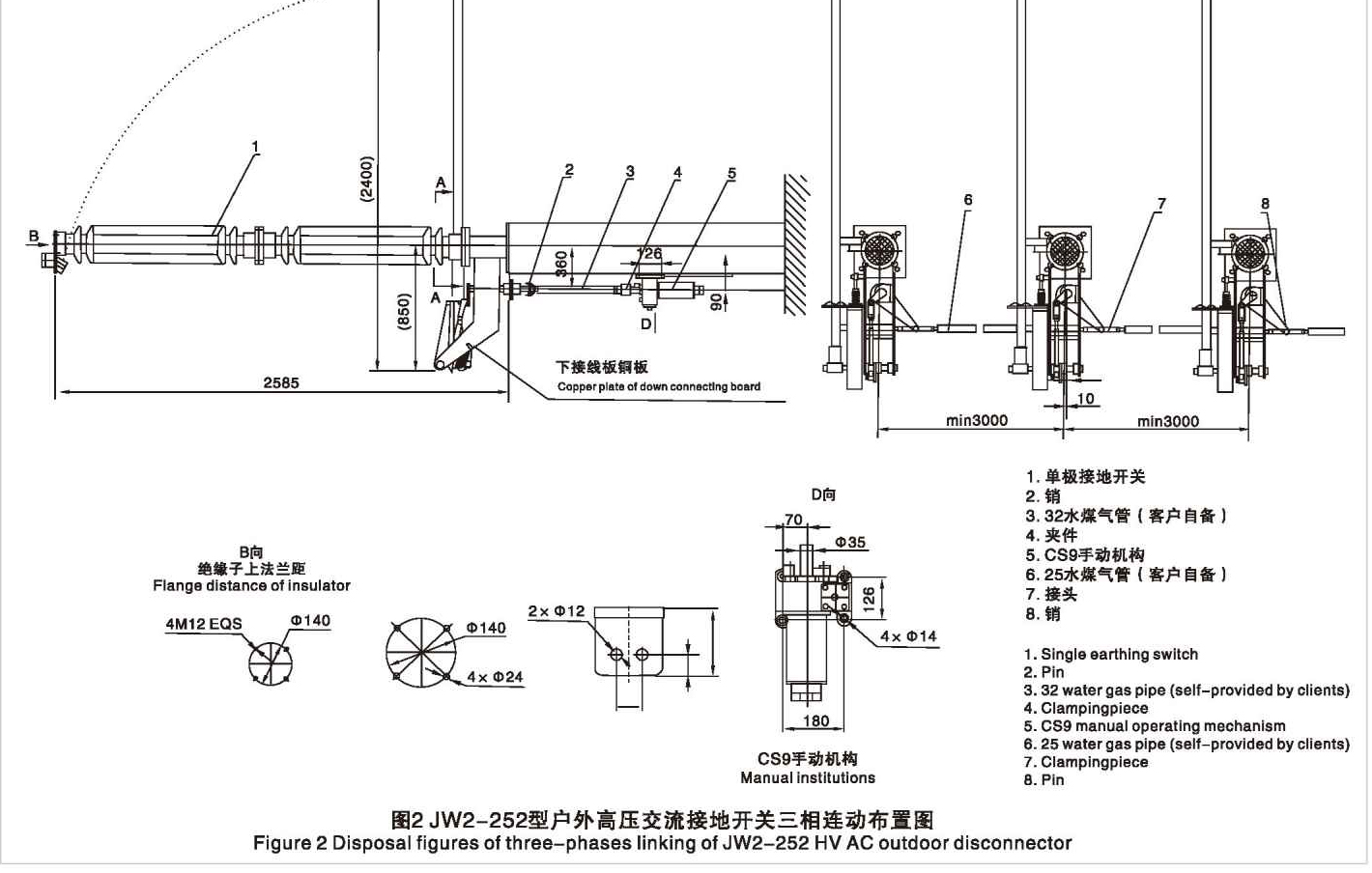

□Outline dimension
