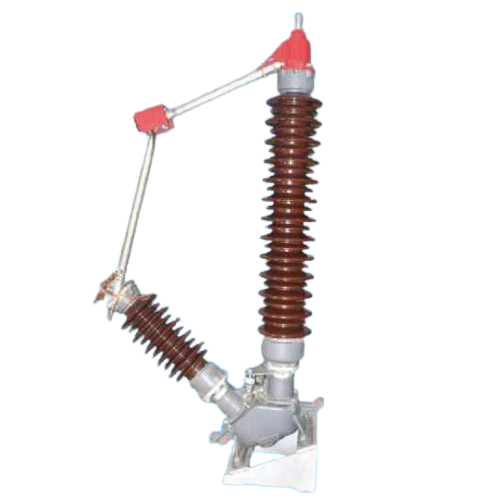

GW13-40.5/72.5/126(W)
Adopting a unique V-type double-column structure with 50° insulator intersection angle and 25° inclined bracket installation, the GW13 series features stable mechanical performance and compact layout. It has low contact resistance and reliable current carrying capacity, ensuring stable no-load switching operation.
Equipped with high-strength anti-fouling insulators with extended creepage distance, this W-type anti-pollution switch provides excellent insulation and anti-interference performance. It perfectly adapts to coastal, high-altitude, humid and heavily polluted harsh outdoor environments.
All metal components adopt hot-dip galvanized anti-corrosion treatment, with strong resistance to rust, oxidation and salt fog erosion. The optimized outdoor structural design withstands extreme weather changes, supporting long-term stable all-weather operation.
The switch supports both manual and electric operation modes, equipped with standard mechanical anti-misoperation interlock devices. It features flexible switching, high structural stability, simple installation and low daily maintenance costs.
As dedicated isolation equipment for transformer neutral point protection, GW13(W) series disconnectors deliver stable performance and outstanding environmental adaptability. We provide global customers with factory direct supply, complete certifications and professional after-sales service.
Product Details

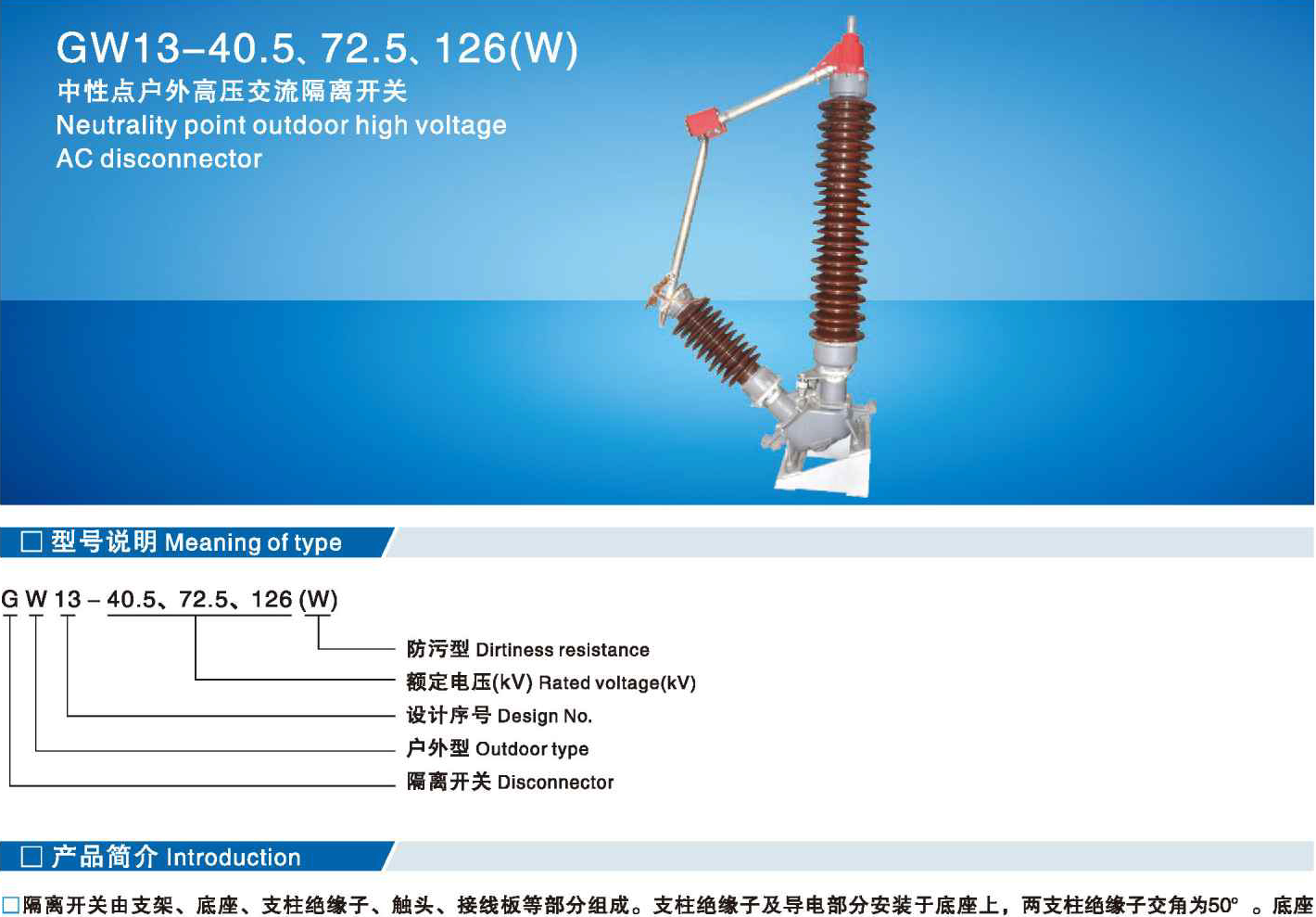

GW13-40.5、72.5、126(W)
Neutrality point outdoor high voltage AC disconnector
□ Meaning of type
□Introduction

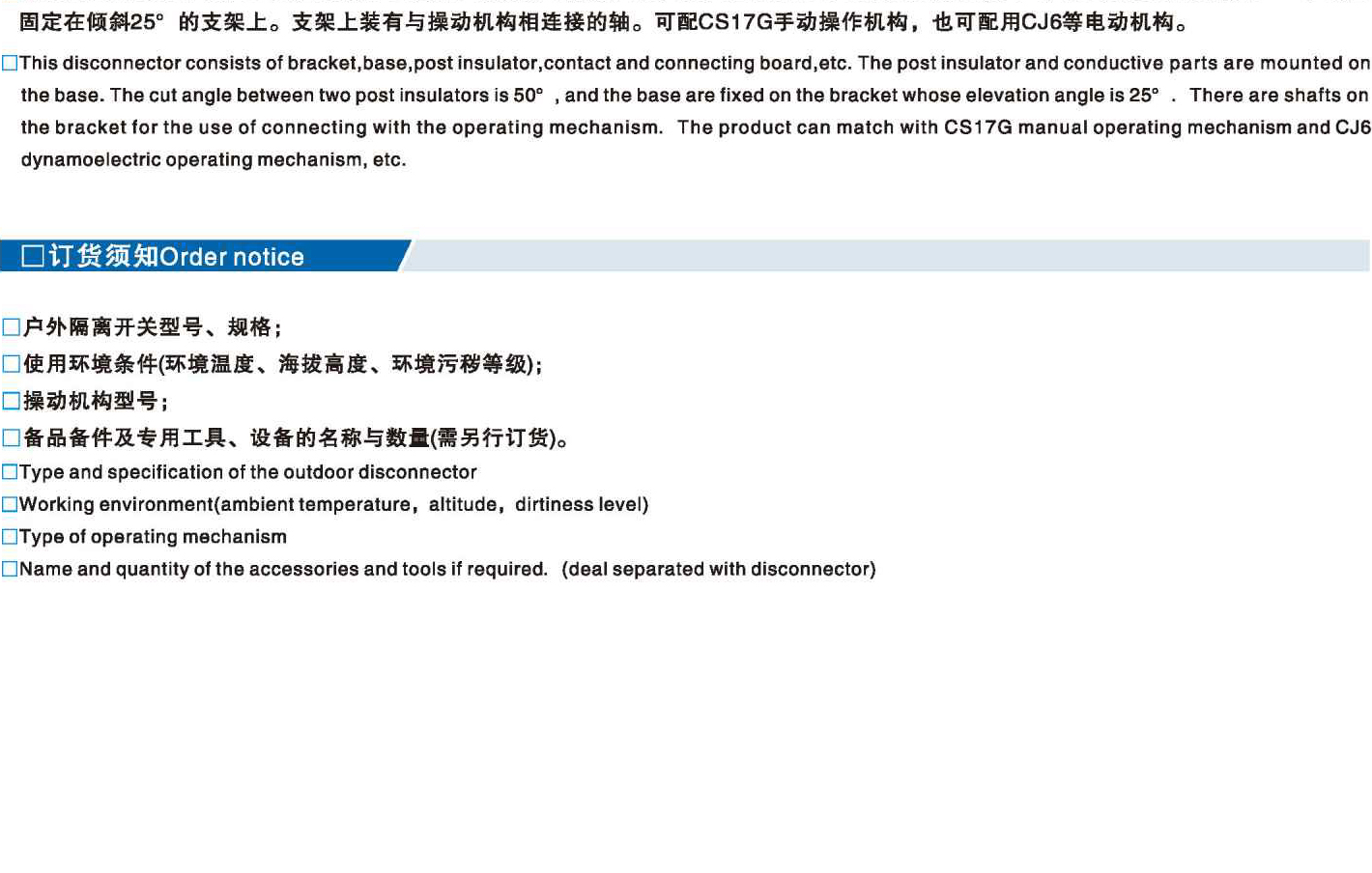

□This disconnector consists of bracket,base,post insulator,contact and connecting board,etc.The post insulator and conductive parts are mounted on the base.The cut angle between two post insulators is 50°,and the base are fixed on the bracket whose elevation angle is 25°.There are shafts on the bracket for the use of connecting with the operating mechanism.The product can match with CS17G manual operating mechanism and CJ6 dynamoelectric operating mechanism,etc.
□Order notice
□Type and specification of the outdoor disconnector
□Working environment(ambient temperature,altitude,dirtiness level)
□Type of operating mechanism
□Name and quantity of the accessories and tools if required.(deal separated with disconnector)

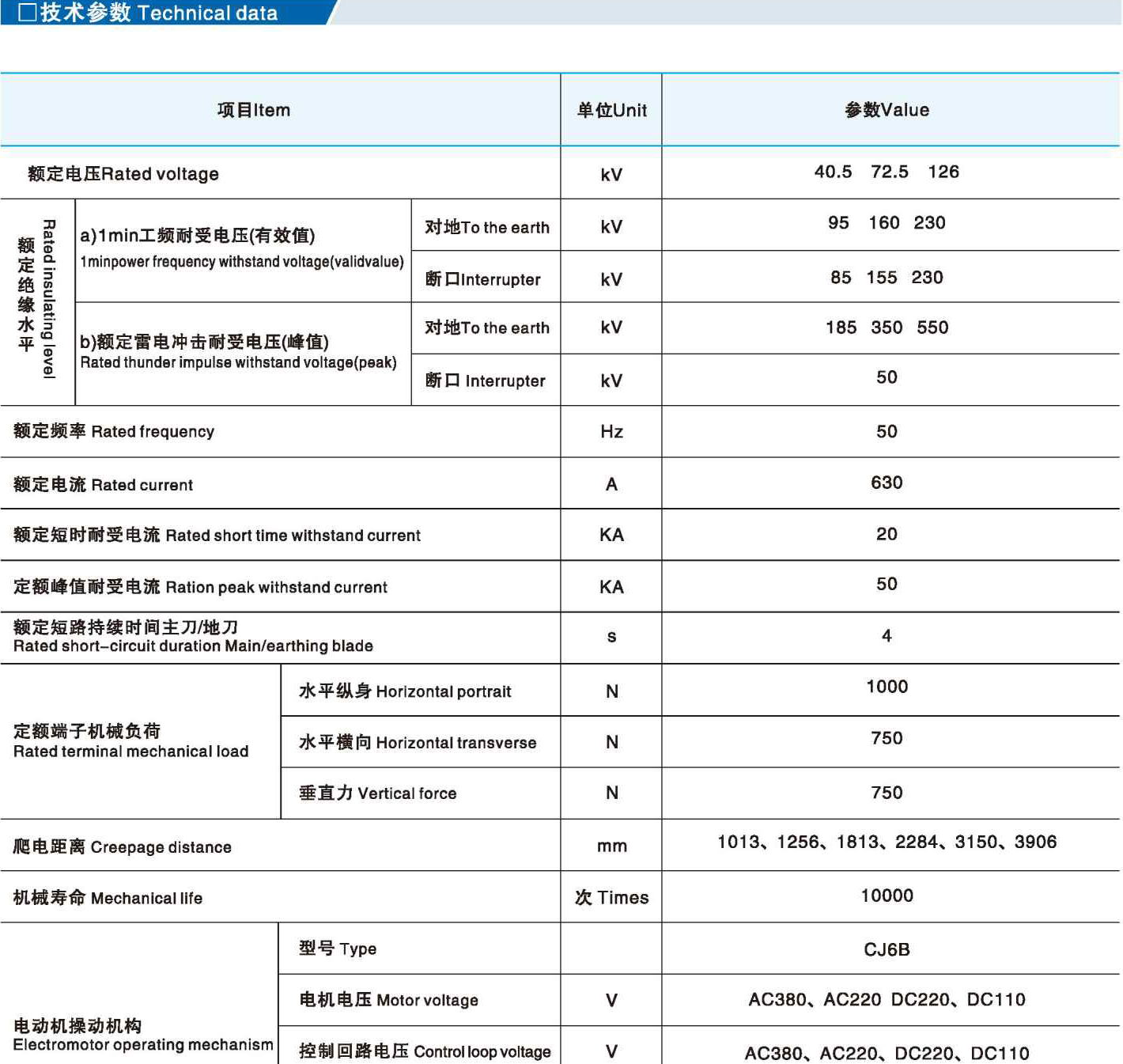

□Technical data
|
ltem |
Unit |
Value |
|||
|
Rated voltage |
kV |
40.572.5126 |
|||
|
Rated insulating level
|
a) 1minpower frequency withstand voltage(validvalue) |
To the earth |
kV |
95160230 |
|
|
Interrupter |
kV |
85155230 |
|||
|
b) Rated thunder impulse withstand voltage(peak) |
To the earth |
kV |
185350550 |
||
|
Interrupter |
kV |
50 |
|||
|
Rated frequency |
Hz |
50 |
|||
|
Rated current |
A |
630 |
|||
|
Rated short time withstand current |
KA |
20 |
|||
|
Ration peak withstand current |
KA |
50 |
|||
|
Rated short-circuit duration Main/earthing blade |
s |
4 |
|||
|
Rated terminal mechanical load |
Horizontal portrait |
N |
1000 |
||
|
Horizontal transverse |
N |
750 |
|||
|
Vertical force |
N |
750 |
|||
|
Creepage distance |
mm |
1013、1256、1813、2284、3150、3906 |
|||
|
Mechanical life |
T i m e s |
10000 |
|||
|
Electromotor operating mechanism |
Type |
|
CJ6B |
||
|
Motor voltage |
V |
AC380、AC220 DC220、DC110 |
|||
|
Controlloop voltage |
V |
AC380、AC220、DC220、DC110 |
|||
|

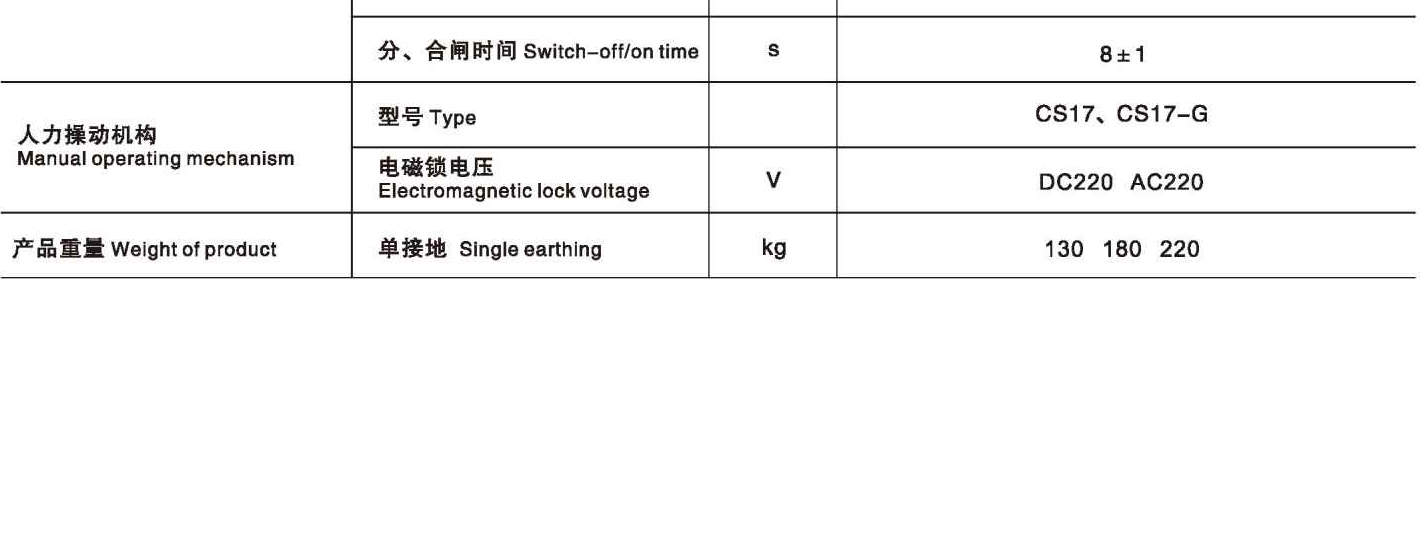

Switch-off/on time |
s |
8±1 |
|||
|
Manual operating mechanism |
Type |
|
CS17、CS17-G |
||
|
Electromagnetic lock voltage |
V |
DC220 AC220 |
|||
|
Weight of product |
Single earthing |
kg |
130180220 |
||

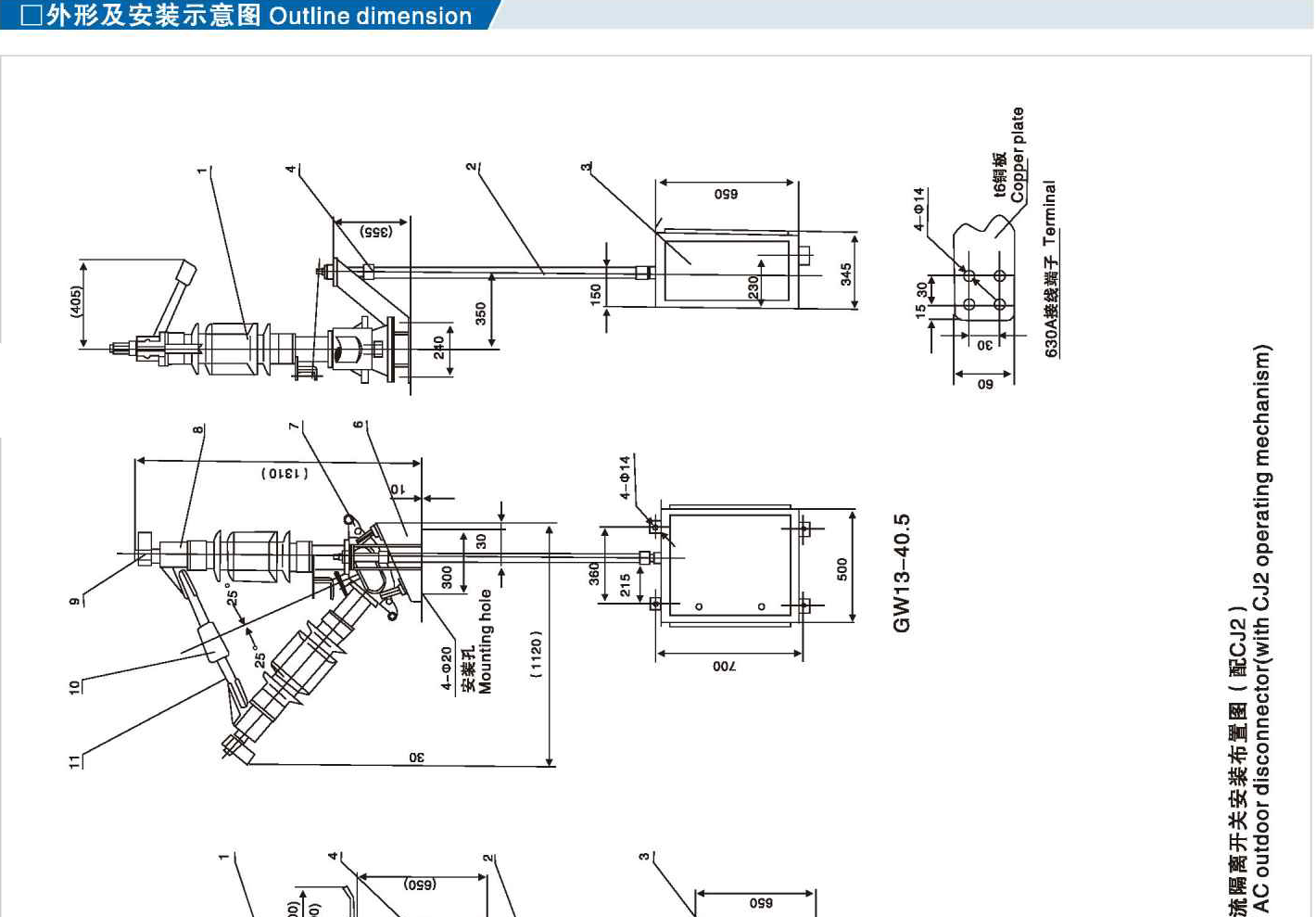

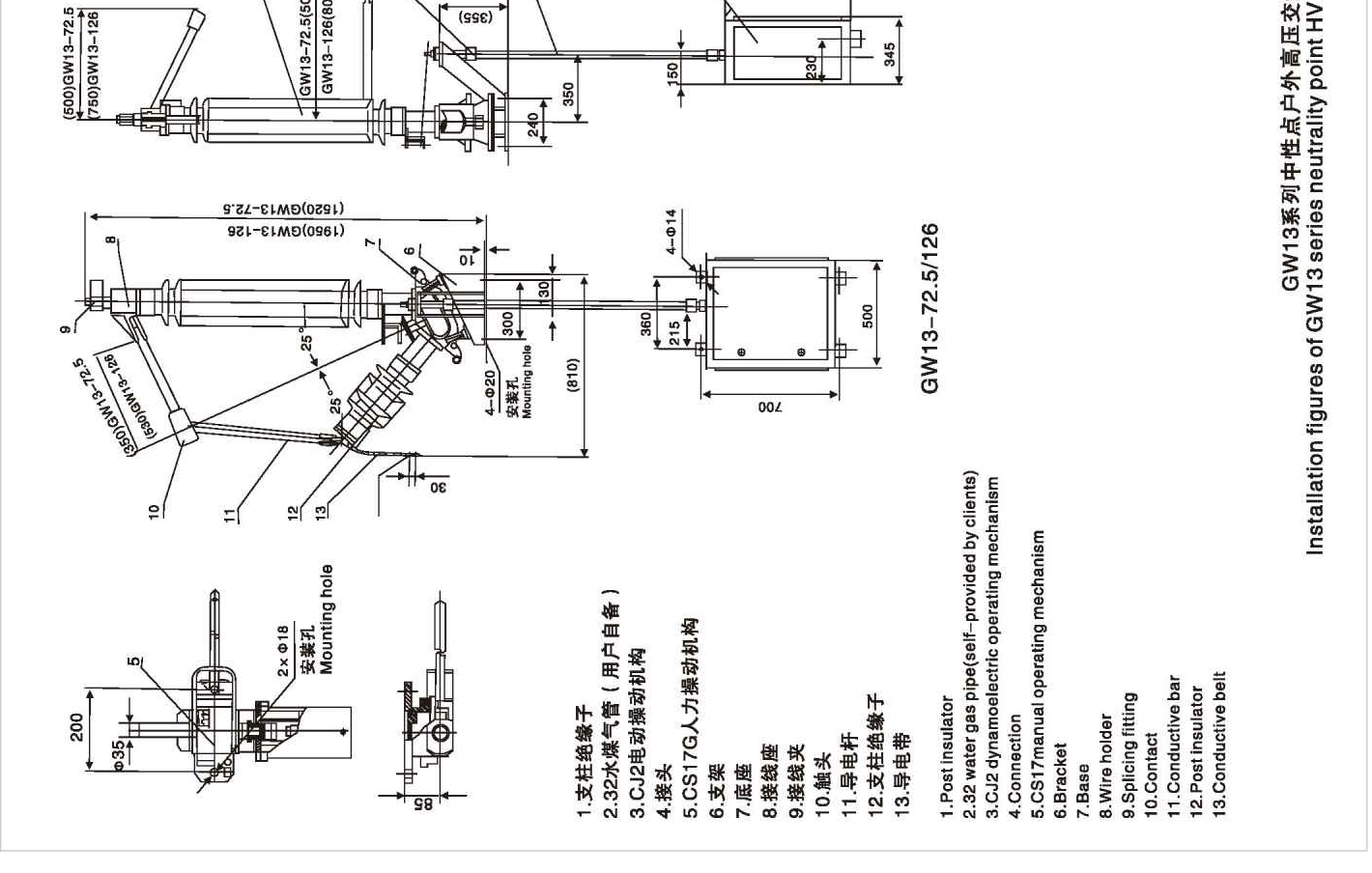

□ Outline dimension
