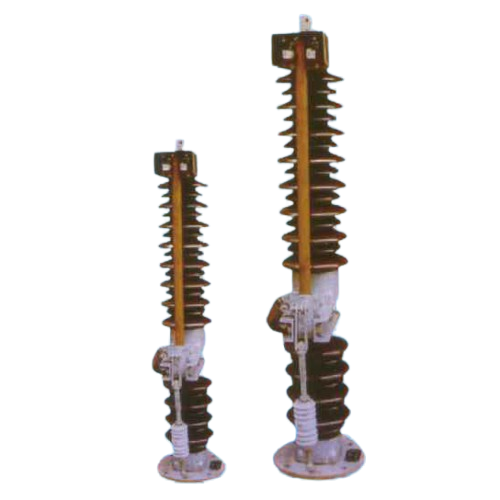

GW8-40.5/72.5/126(W)
Featuring a compact vertical rotary structure and premium conductive parts, the GW8(W) series has low contact resistance and stable current carrying capacity, ensuring efficient power transmission without overheating during long-term operation.
Equipped with anti-fouling insulators with extended creepage distance, this W-type anti-pollution switch delivers excellent insulation and anti-interference performance, suitable for coastal, high-altitude, humid and heavily polluted outdoor environments.
All metal components are hot-dip galvanized for superior rust, oxidation and salt fog resistance. The optimized outdoor structure withstands extreme weather, enabling stable all-weather long-term operation.
Built with mechanical anti-misoperation interlocks, the switch supports manual and electric operation. It features flexible switching, high stability, easy installation and low maintenance.
Ideal for medium and high voltage power grid projects, GW8(W) series disconnectors offer stable performance and strong environmental adaptability. We provide global customers with factory direct supply, complete certifications and professional after-sales service.
Product Details

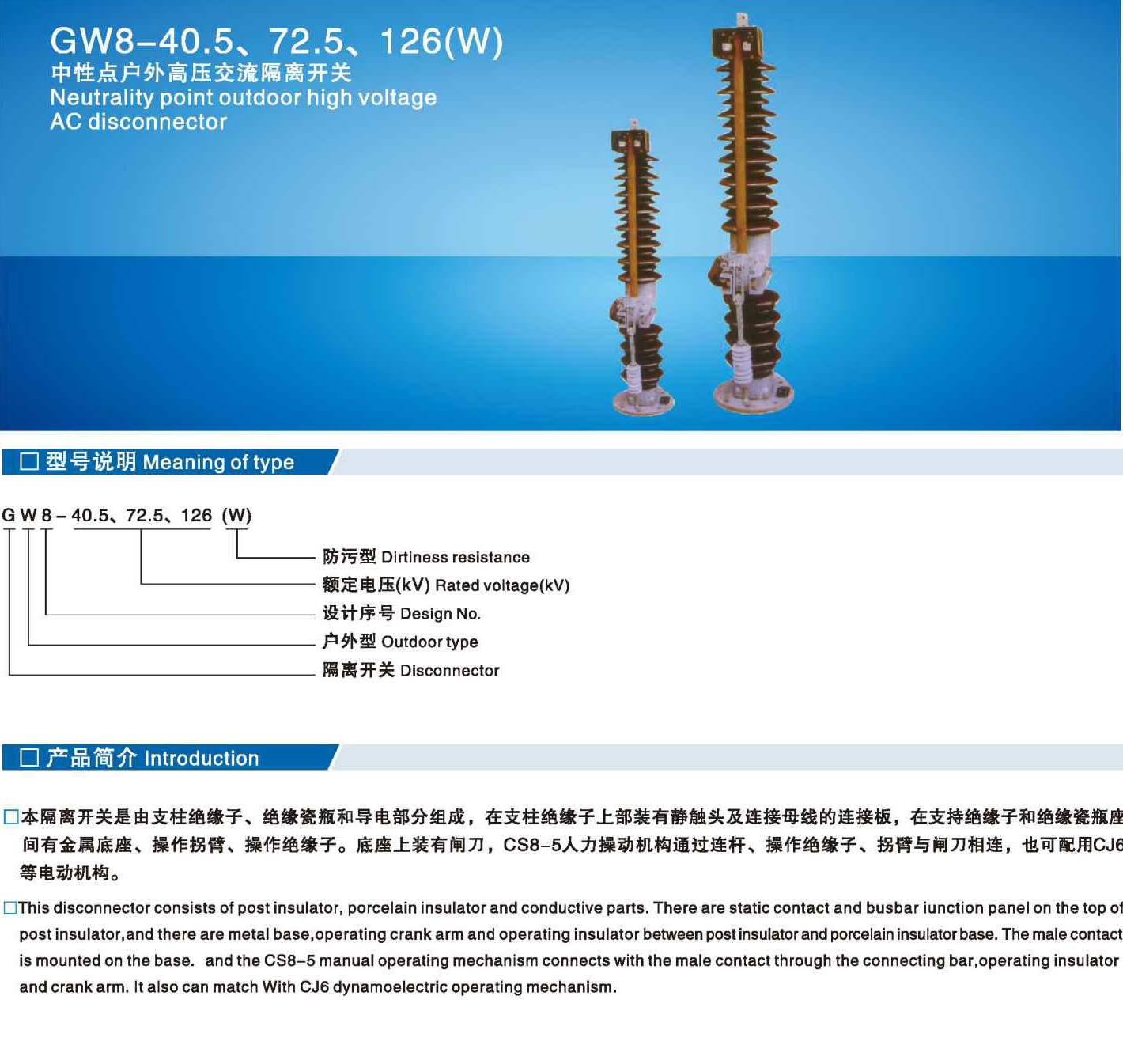

GW8-40.5、72.5、126(W)
Neutrality point outdoor high voltage AC disconnector
□Introduction
post insulator,and there are metal base,operating crank arm and operating insulator between post insulatorand porcelain insulator base.The male contact is mounted on the base.and the CS8-5manual opeerating mechanism connects with the male contact through the connecting bar,operating insulator and crank arm.It also can match With CJ6 dynamoelectric operating mechanism.

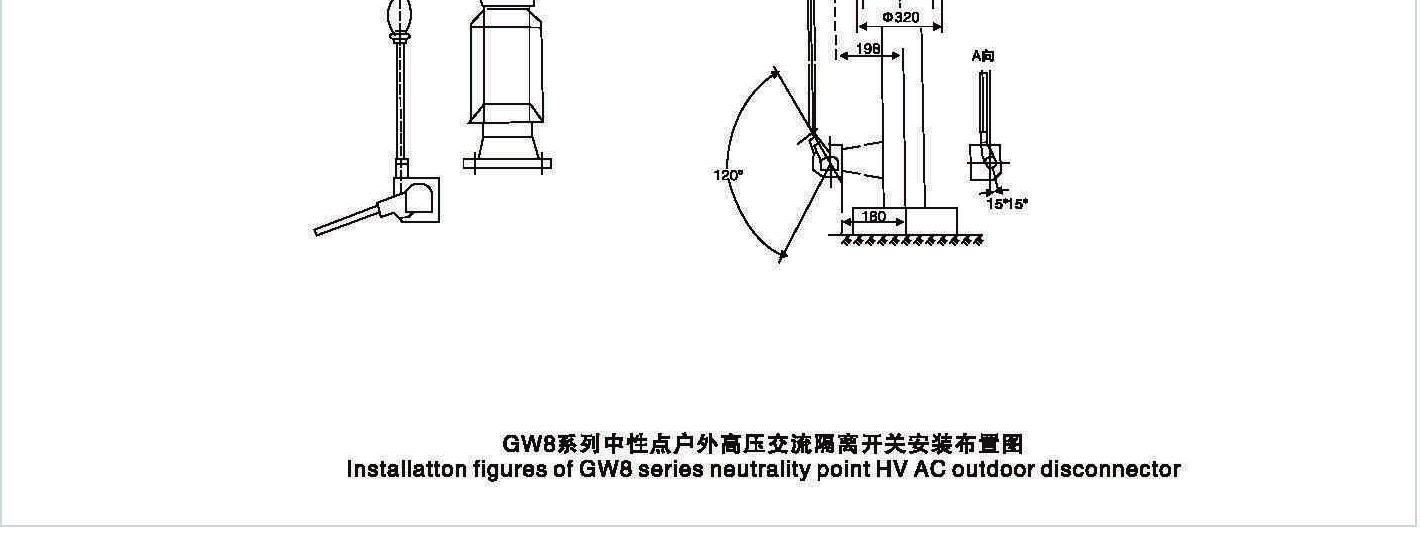

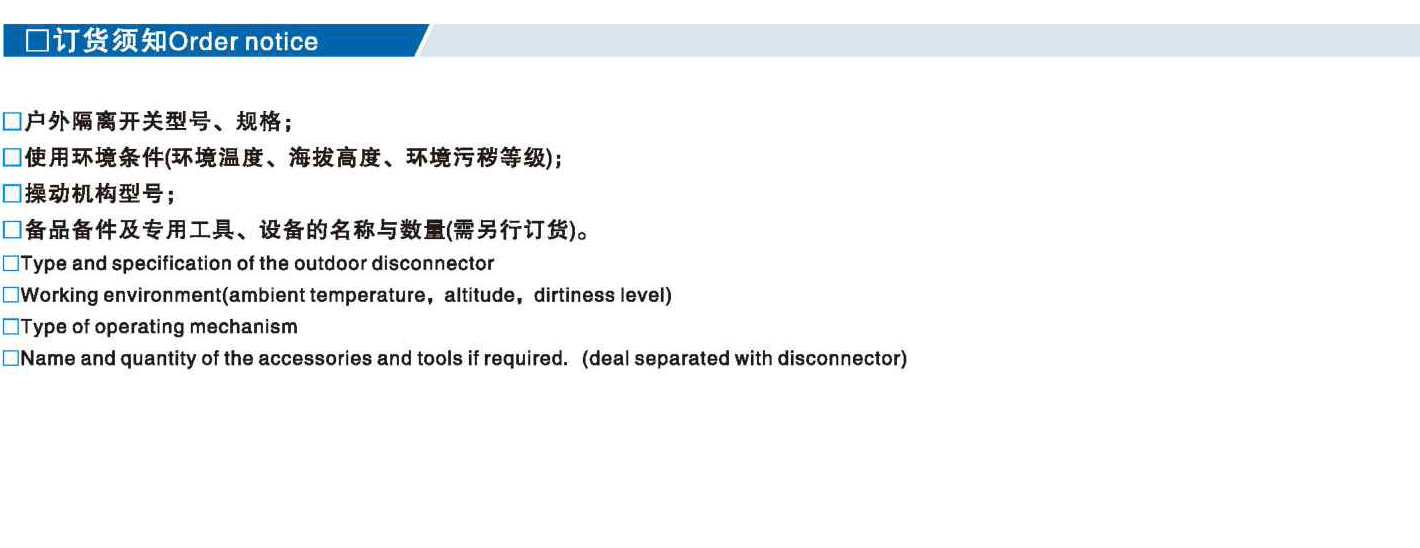

□Order notice
□Type and specification of the outdoor disconnector
□Working environment(ambient temperature,altitude,dirtiness level)
□Type of operating mechanism
□Name and quantity of the accessories and tools if required.(deal separated with disconnector)

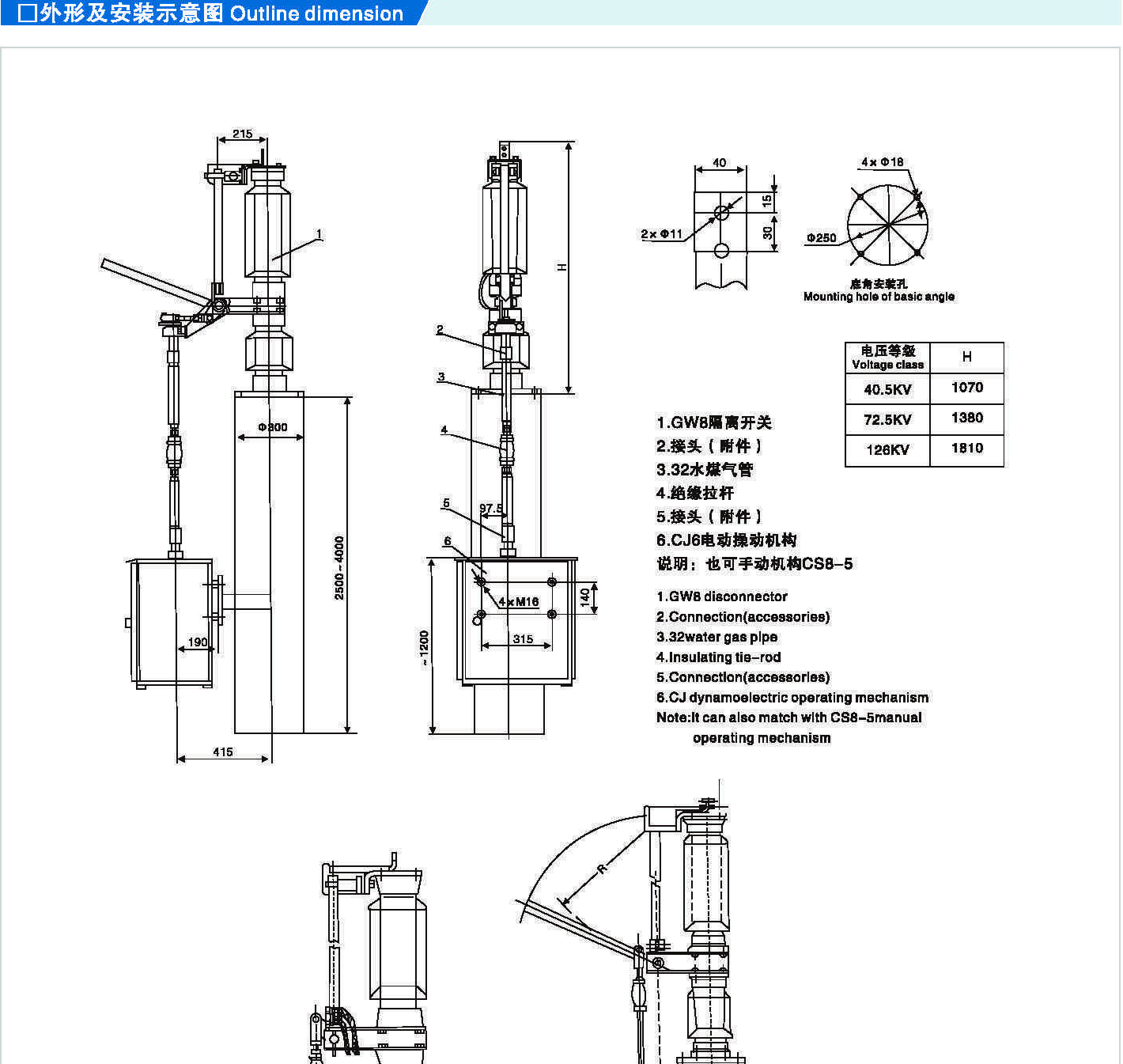

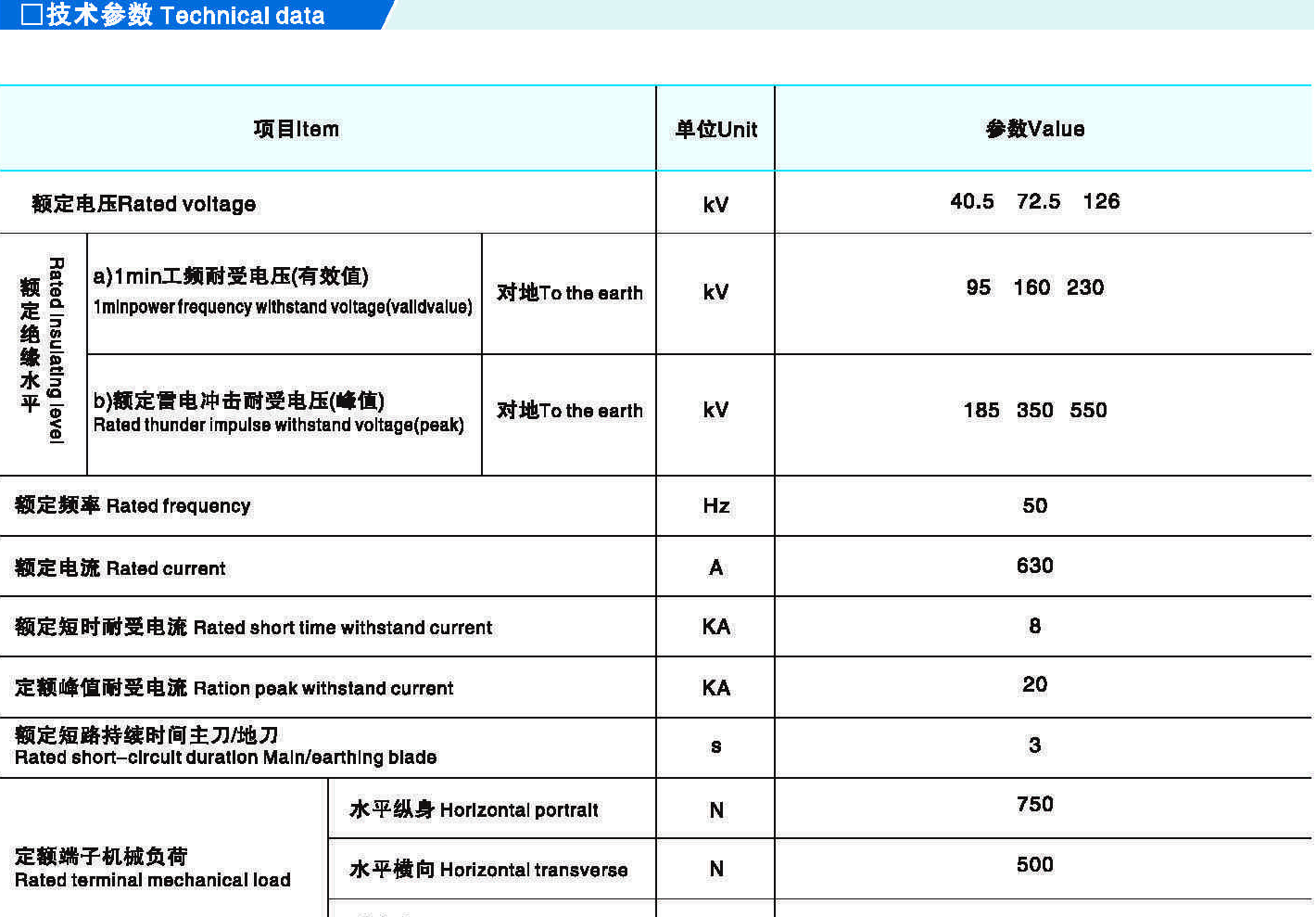

□Technical data
|
ltem |
Unit |
Value |
|||
|
Rated voltage |
kV |
40.572.5126 |
|||
|
Rated Insulatng level
|
a) 1mlnpowerfrequency wlthstand voltage(valldvalue) |
To the earth |
kV |
95160230 |
|
|
b) Rated thunder impulse withstand voltage(peak) |
To the earth |
kV |
185350550 |
||
|
Rated frequency |
Hz |
50 |
|||
|
Rated current |
A |
630 |
|||
|
Rated short time withstand current |
KA |
8 |
|||
|
Ration peak withstand current |
KA |
20 |
|||
|
Rated short-clrcult duratlon Maln/earthing blade |
8 |
3 |
|||
|
Rated terminal mechanical load |
Horlzontal portralt |
N |
750 |
||
|
Horizontal transverse |
N |
500 |
|||
|
Vertical force |
N |
750 |
|||
|
Creepage distance |
mm |
1013、1256、1813、2284、3150、3906 |
|||
|
Mechanical life |
Times |
10000 |
|||
|

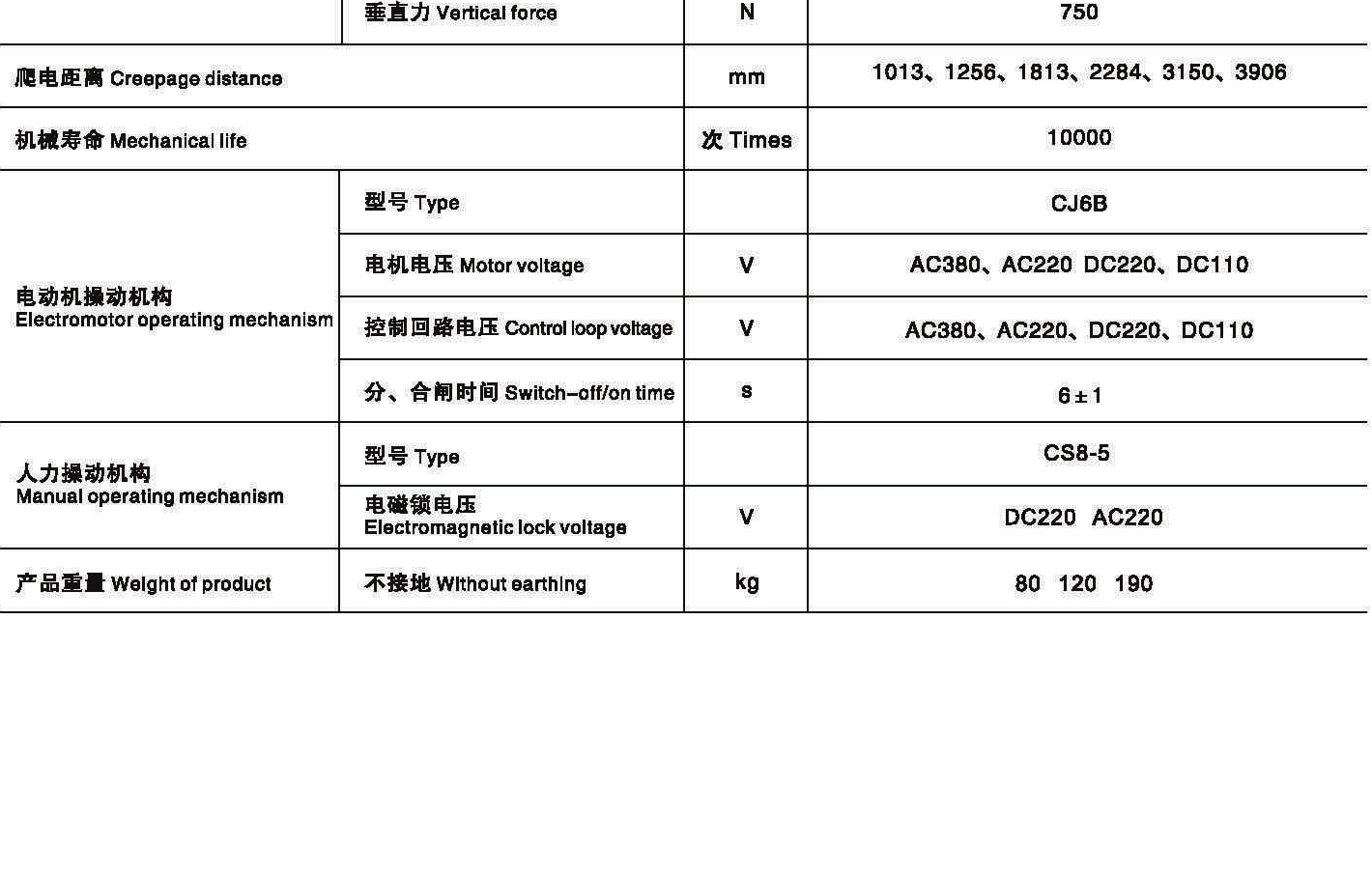

Electromotor operating mechanism |
Type |
|
CJ6B |
||
|
Motor voltage |
V |
AC380、AC220 DC220、DC110 |
|||
|
Control loopvottage |
V |
AC380、AC220、DC220、DC110 |
|||
|
witch-off/on time |
s |
6±1 |
|||
|
Manual operating mechanism |
Type |
|
CS8-5 |
||
|
Electromagnetic lock voltage |
V |
DC220 AC220 |
|||
|
Welght of product |
WIthout earthlng |
kg |
80120190 |
||
