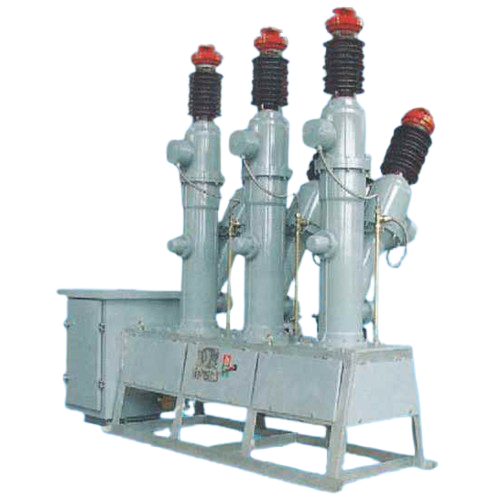

LW8-40.5
Equipped with a high-precision spring operating mechanism, the LW8-40.5 SF6 circuit breaker features flexible opening and closing action, low mechanical failure rate and no frequent maintenance. The fully sealed integral gas chamber structure effectively reduces gas leakage, with an ultra-low annual leakage rate, adapting to long-term outdoor operation in complex environments such as high temperature, severe cold, humidity and dust.
This model supports multiple rated current and breaking capacity specifications, covering 630A, 1250A, 1600A and 2000A, fully complying with IEC and international industry standards. It is widely applicable in power grid reconstruction, industrial and mining enterprises, photovoltaic power stations, wind power plants and urban outdoor substations, undertaking circuit switching, overload protection and short-circuit fault protection functions.
With the advantages of compact structure, stable performance, long service life and low operation cost, the LW8-40.5 outdoor SF6 circuit breaker has become a mainstream and reliable high-voltage switch device for medium and high voltage outdoor power systems.
Product Details

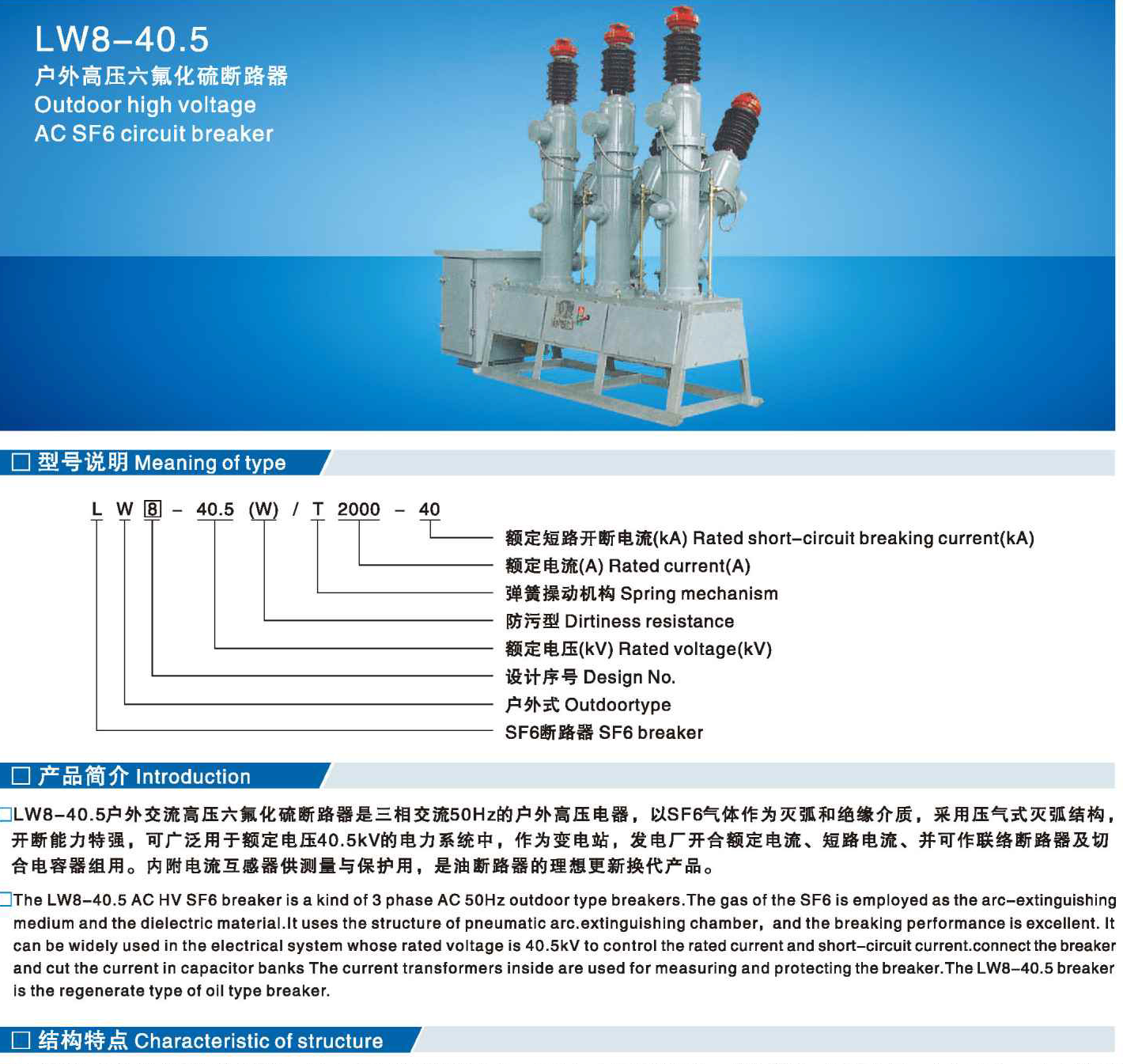

LW8-40.5
Outdoor high voltage AC SF6 circuit breaker
□ Meaning of type
口Introduction
□The LW8-40.5 ACHV SF6 breaker is a kind of 3 phase AC50Hz outdoor type breakers.The gas of the SF6 is employed as the arc-extinguishing medium and the dielectric material.It uses the structure of pneumatic arc.extinguishing chamber,and the breaking performance is excellent.It can be widely used in the electrical system whose rated voltage is 40.5kV to control the rated current and short-circuit current.connect the breaker and cut the current in capacitor banks The current transformers inside are used for measuring and protecting the breaker.The LW8-40.5 breaker is the regenerate type of oil type breaker.

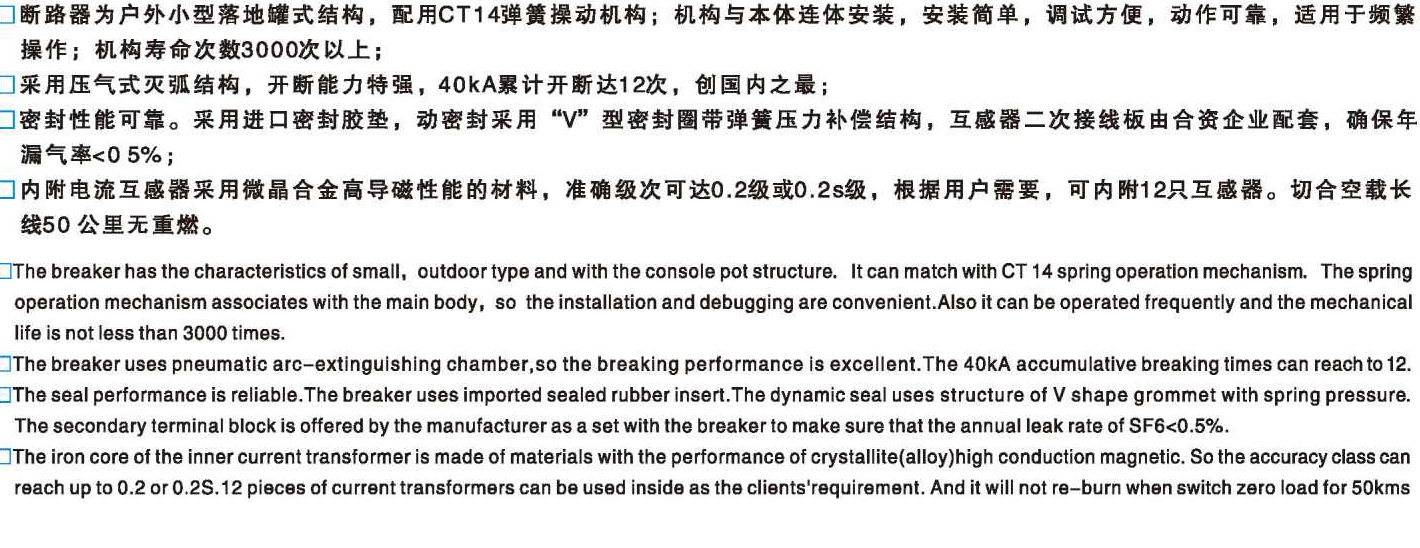

□ Characteristic of structure
□The breaker has the characteristics of small,outdoor type and with the console pot structure.It can match with CT 14 spring operation mechanism.The spring operation mechanism associates with the main body,so the installation and debugging are convenient.Also it can be operated frequently and the mechanical life is not less than 3000 times.
□The breaker uses pneumatic arc-extinguishing chamber,so the breaking performance is excellent.The 40kA accumulative breaking times can reach to 12.
□The seal performance is reliable.The breaker uses imported sealed rubber insert.The dynamic seal uses structure of V shape grommet with spring pressure. The secondary terminal block is offered by the manufacturer as a set with the breaker to make sure that the annual leak rate of SF6<0.5%.
□The iron core of the inner current transformeris made of materials with the performance of crystallite(alloy)high conduction magnetic.So the accuracy class can reach up to 0.2 or0.2S.12 pieces of current transformers can be used inside as the clients'requirement.And it will not re-burn when switch zero load for 50kms

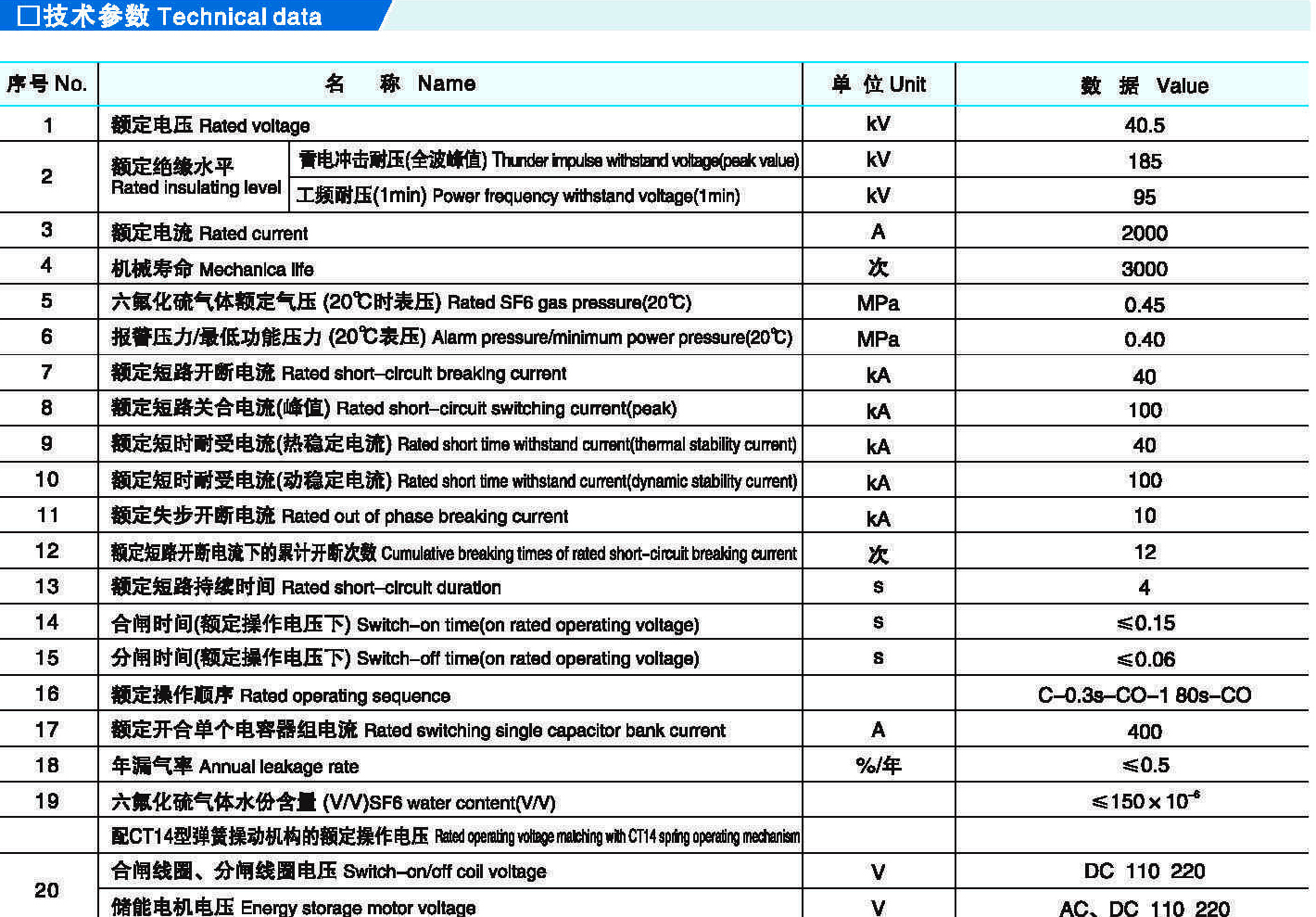

口Technical data
|
No. |
Name |
Unit |
Value |
|
|
1 |
Rated voltage |
kV |
40.5 |
|
|
2 |
Rated insulating level |
Thunder impuse witnstand volage(peakvalue) |
kV |
185 |
|
|
|
Power frequoncy withstand voltago(1min) |
kV |
95 |
|
3 |
Rated current |
A |
2000 |
|
|
4 |
Mechanlca lfe |
次 |
3000 |
|
|
5 |
Rated SF6 gas pressure(20℃) |
MPa |
0.45 |
|
|
6 |
Alam pressure/minimum power pressure(20℃) |
MPa |
0.40 |
|
|
7 |
Rated short-clrcuIt breaklng current |
kA |
40 |
|
|
8 |
Rated shor-circuit swiching curent(peak) |
kA |
100 |
|
|
9 |
Rated short time withstand cunent(themalstablity curent) |
kA |
40 |
|
|
10 |
Rated short time withstand curent(dynamic stability curent) |
kA |
100 |
|
|
11 |
Rated out of phase breaking curent |
kA |
10 |
|
|
12 |
Cumulatie breaking times of rated shot-icuit breaking curent |
time |
12 |
|
|
13 |
Rated short-clrcut duratlon |
s |
4 |
|
|
14 |
Switch-on time(on rated operating voltage) |
s |
≤0.15 |
|
|
15 |
Switch-off time(on rated operating voltage) |
s |
≤0.06 |
|
|
16 |
Ratad operating sequence |
|
C-0.3s-CO-180s-CO |
|
|
17 |
Rated switching single capacitor bank curent |
A |
400 |
|
|
18 |
Annual leakage rate |
%/ |
≤0.5 |
|
|
19 |
SF6 water content(VM) |
|
≤150×10⁶ |
|
|
|
Rated opemaing oltbgemacthing wihCT14spímg peraing mechanism |
|
|
|
|
20 |
Switch-on/off coil voltage |
V |
DC 110220 |
|
|
|
Energy storage motor voltage |
V |
AC、DC 110220 |
|
|
21 |
Waight of Sf6 gas |
kg |
8 |
|
|
22 |
Weight of breaker(including operating mechanism) |
kg |
1400 |
|
|

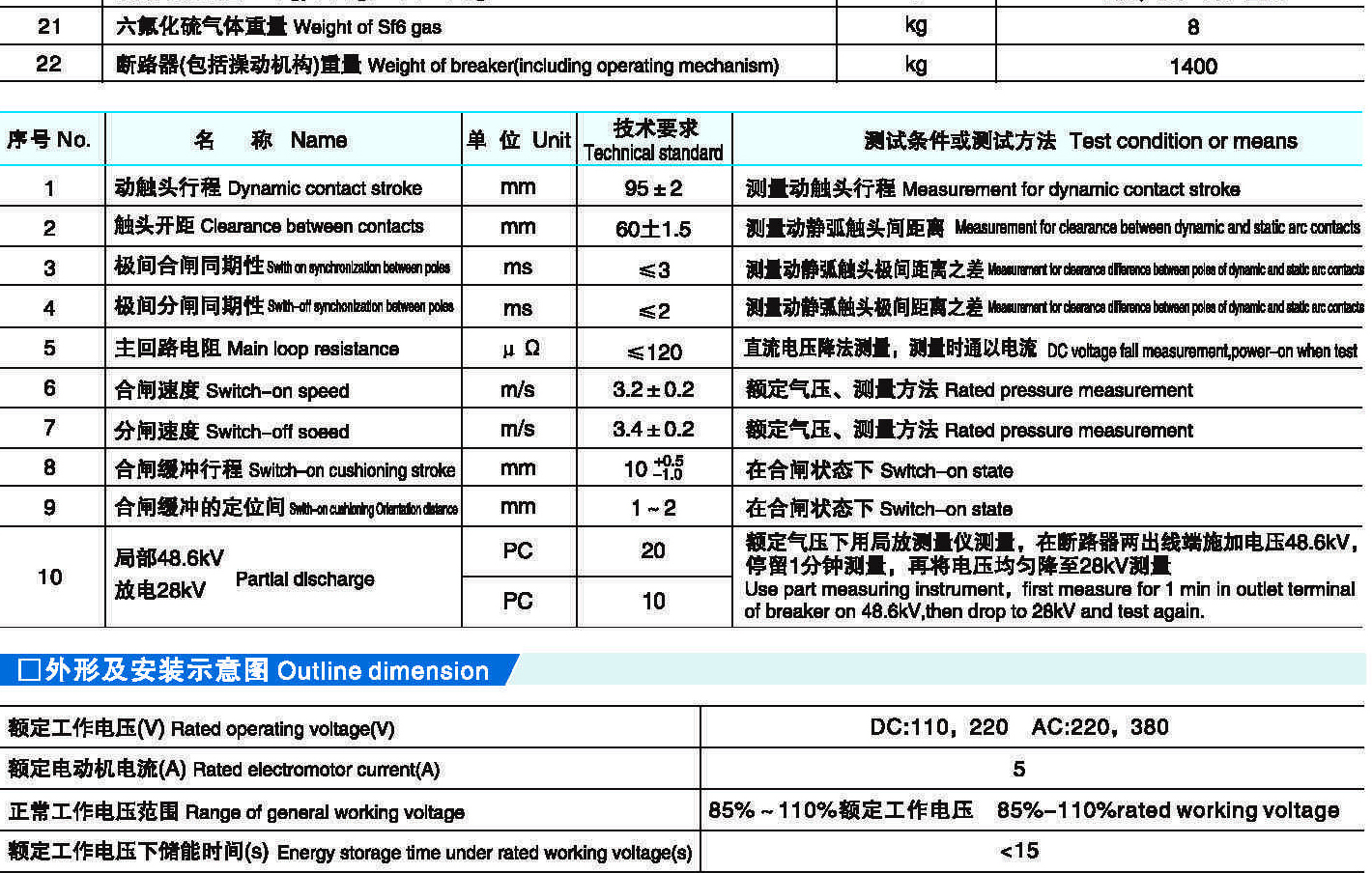

No. |
N a m e |
U n i t |
Technical standard |
Test condition or means |
|
|
1 |
Dynamic contact stroke |
mm |
95±2 |
Measurement for dynamic contact stroke |
|
|
2 |
Clearance between contacts |
mm |
60土1.5 |
Masureamantforclearance betwoen dynamic and staic are cortacts |
|
|
3 |
Smt n sncronzulo beton pdba |
ms |
≤3 |
Mhoumor trcoweca famno batea polmof pnamcandait cortat |
|
|
4 |
St-of snconato btwon poa |
ms |
≤2 |
Maunmonitroweca fiemna batmom pomof mancand at ancrtat |
|
|
5 |
Main loop resistance |
uΩ |
≤120 |
DC volagefal masurementpowor-on when test |
|
|
6 |
Switch-on speed |
m/s |
3.2±0.2 |
Rated pressure measurement |
|
|
7 |
Switch-of soeed |
m/s |
3.4±0.2 |
Rated pressure measurement |
|
|
8 |
Switch-on cushioning stroke |
mm |
109.5 |
Swtch-on state |
|
|
9 |
8m-sncururnomndtrc |
mm |
1~2 |
Switch-on state |
|
|
10 |
48.6kV 2 8 kV |
Parlal dlscharge |
PC |
20 |
Use part measuring instrument,first measure for 1 min in outlet teminal of breaker on 48.6kV,then drop to 28kV and test again. |

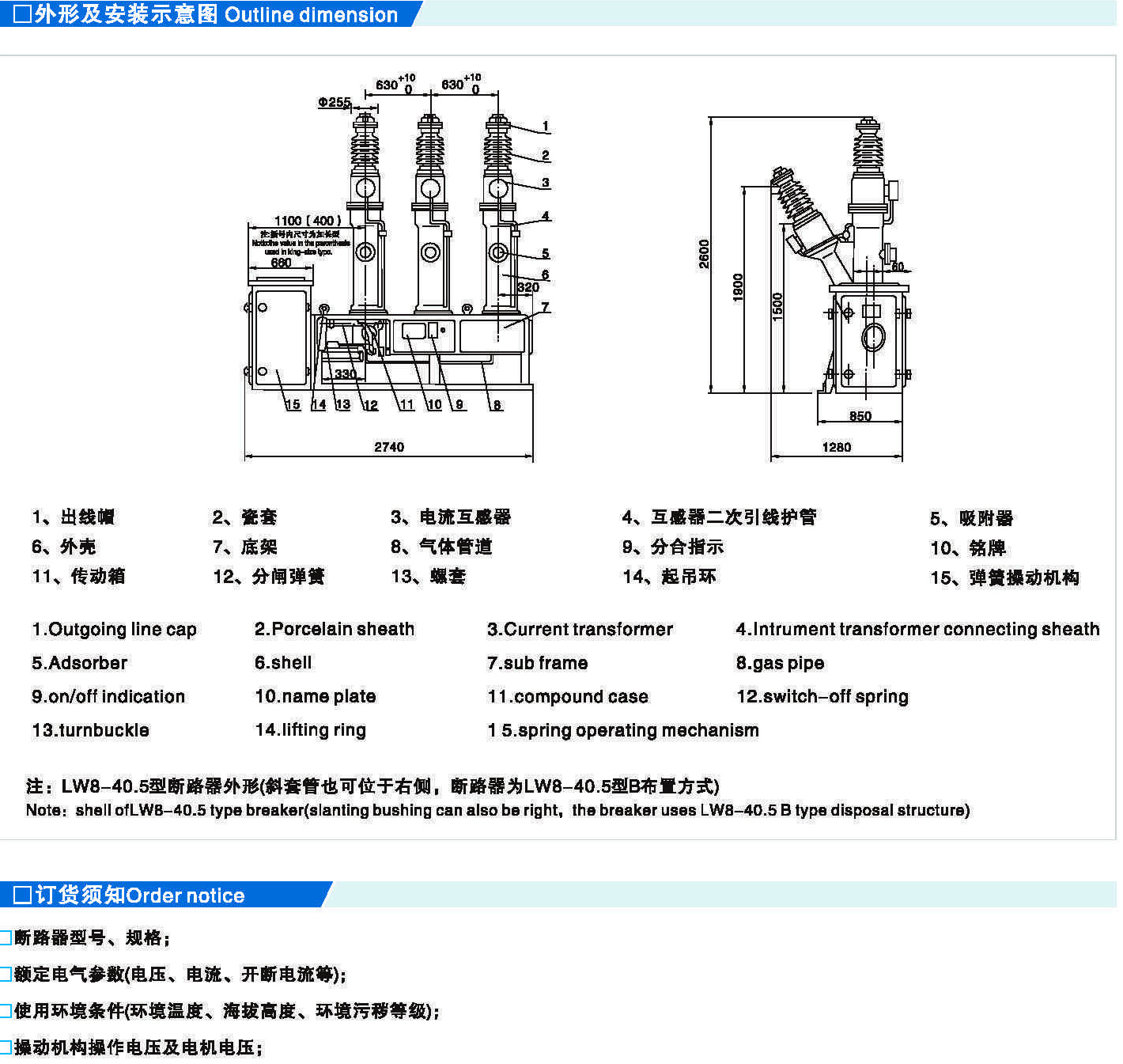

□Outline dimension
|
Rated operating voltage(V) |
DC:110,220 AC:220,380 |
|
Rated electromotor curent(A) |
5 |
|
Range of genaral working voltage |
85%-110%rated working voltage |
|
Energy storage time under rated working voltage(s) |
<15 |
□ Outline dimension

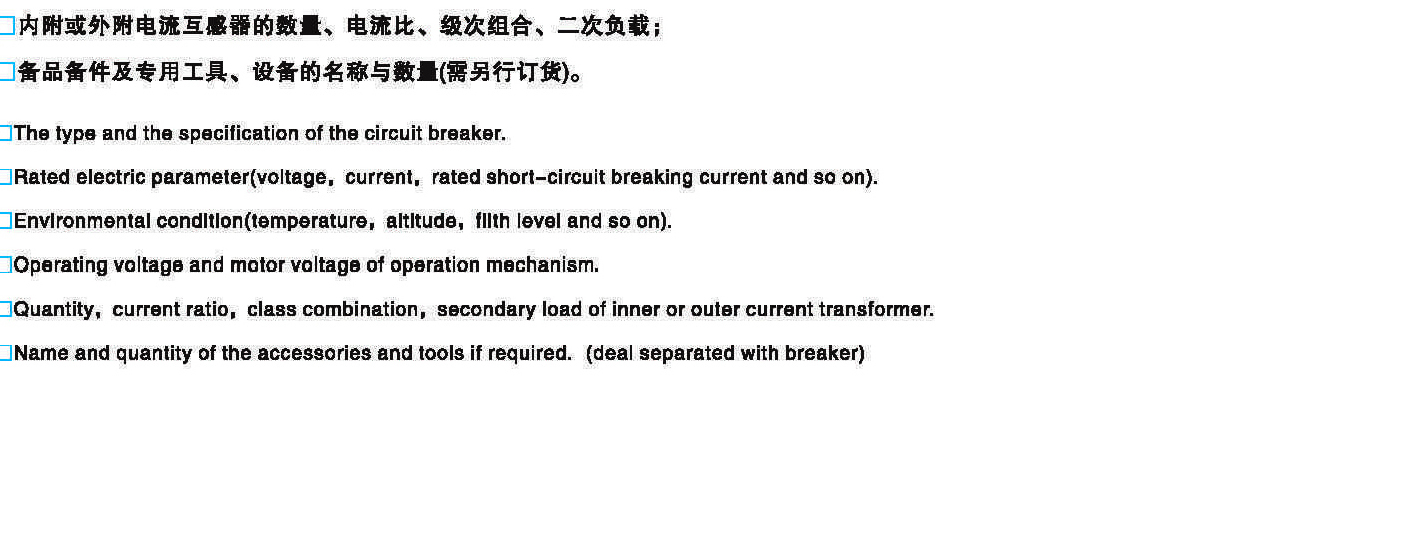

口 Order notice
□The type and the specification of the circuit breaker.
□Rated electric parameter(voltage,current,rated short-circuit breaking current and so on).
□Envlronmental condltlon(temperature,altitude,flth level and so on).
□Oparating valtage and mator valtage of operation mechanism.
□Quantity,current ratio,class combination,secondary load of inner or outer current transformer.
□Name and quantity of the accessories and tools if required.(deal separated with breaker)
