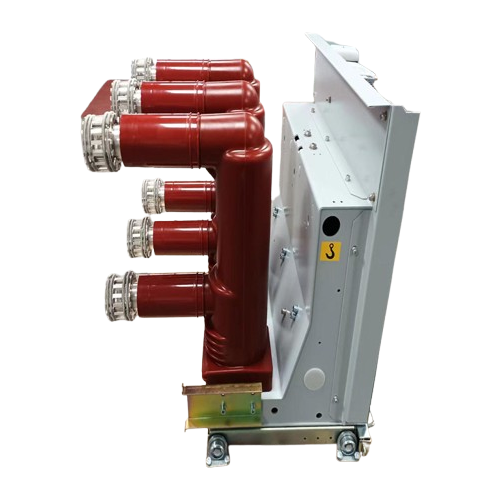

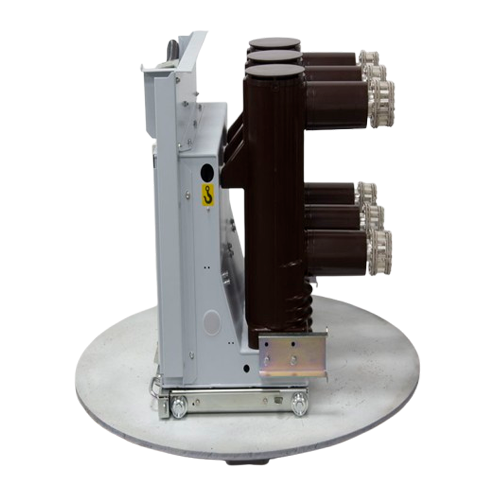

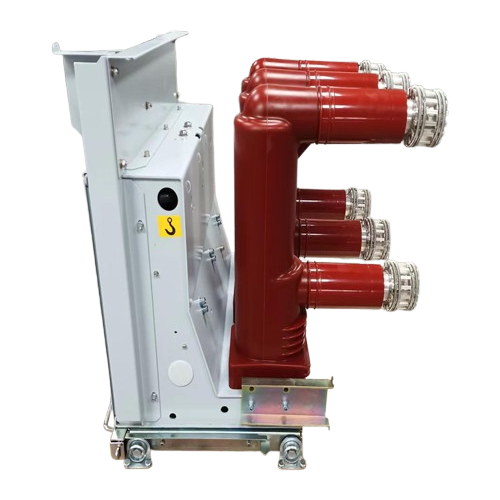

ZN 63
Adopting advanced vacuum arc extinction technology, the breaker features strong breaking capacity and stable insulation performance. It achieves arc-free operation, low noise and pollution-free work, supporting frequent switching operations.
Configured with a high-stability spring operating mechanism, ZN63 runs flexibly and stably with low mechanical wear. It can quickly cut off short-circuit faults, ensuring high operational reliability and long service life.
With compact modular structure and high mechanical strength, the product occupies small installation space and adapts to various complex indoor power supply scenarios.
It is easy to install and debug with minimal daily maintenance, effectively reducing long-term operation costs for power distribution projects.
As classic core protection equipment for 12kV power systems, ZN63 vacuum circuit breaker delivers stable performance and high safety. We provide global customers with factory direct supply, complete certifications and professional after-sales service.
Product Details
Overview

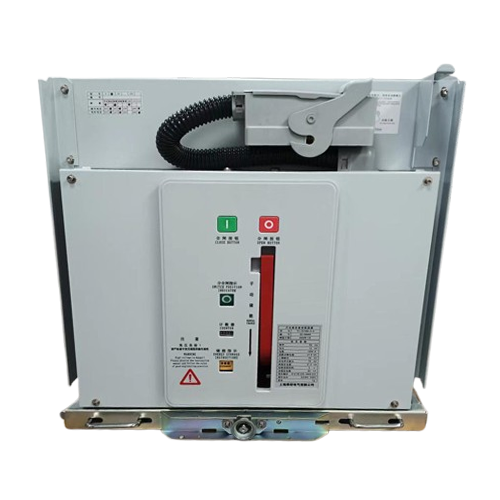

ZN63A (VS1)-24 indoor high voltage AC vacuum circuit breaker (hereinafter referred to as circuit breakeris used in three-phase AC 50Hz indoor places with rated voltage of 24kV. It is suitable for applications withloads of different nature and freguent operations for the protection and control of electrical facilities used inindustrial and mining, enterprises, power plants and substations, especially for metallurgy, chemicals, andcoal industries.
The circuit breaker comply with GB/T 1984 "High-voltage alternating-current circuit-breakers", GB/T 11022"Common specifications for high-voltage switchgear and controlgear standard", DL/T 402 "High-voltagealternating-current circuit-breakers", and IEC standard.
The operating mechanism of circuit breaker is designed as an integrated structure. The operating mechanismand the primary circuit are arranged at front and back. It can be used as a fixed installation unit (hixed cabinetor form a handcart unit (handcart cabinet) together with the advance mechanism (chassis cart)

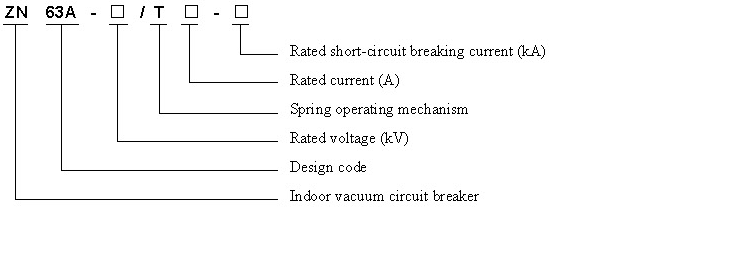

Type Designation

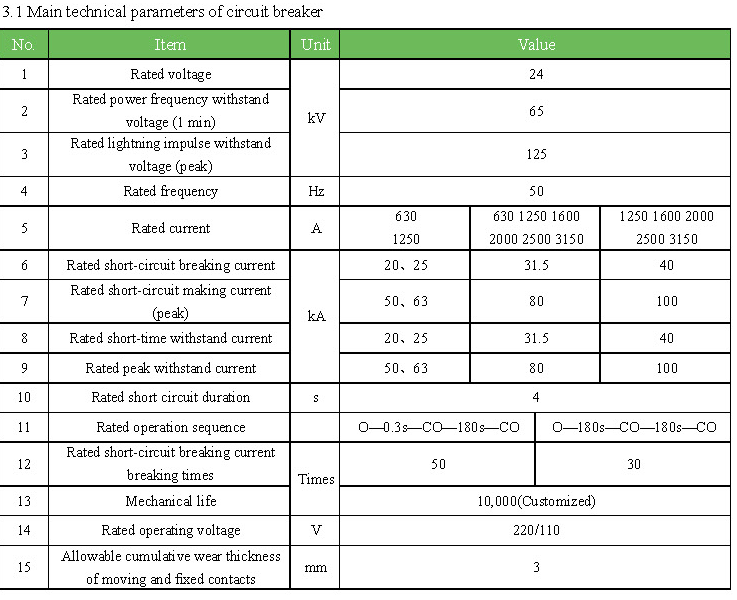

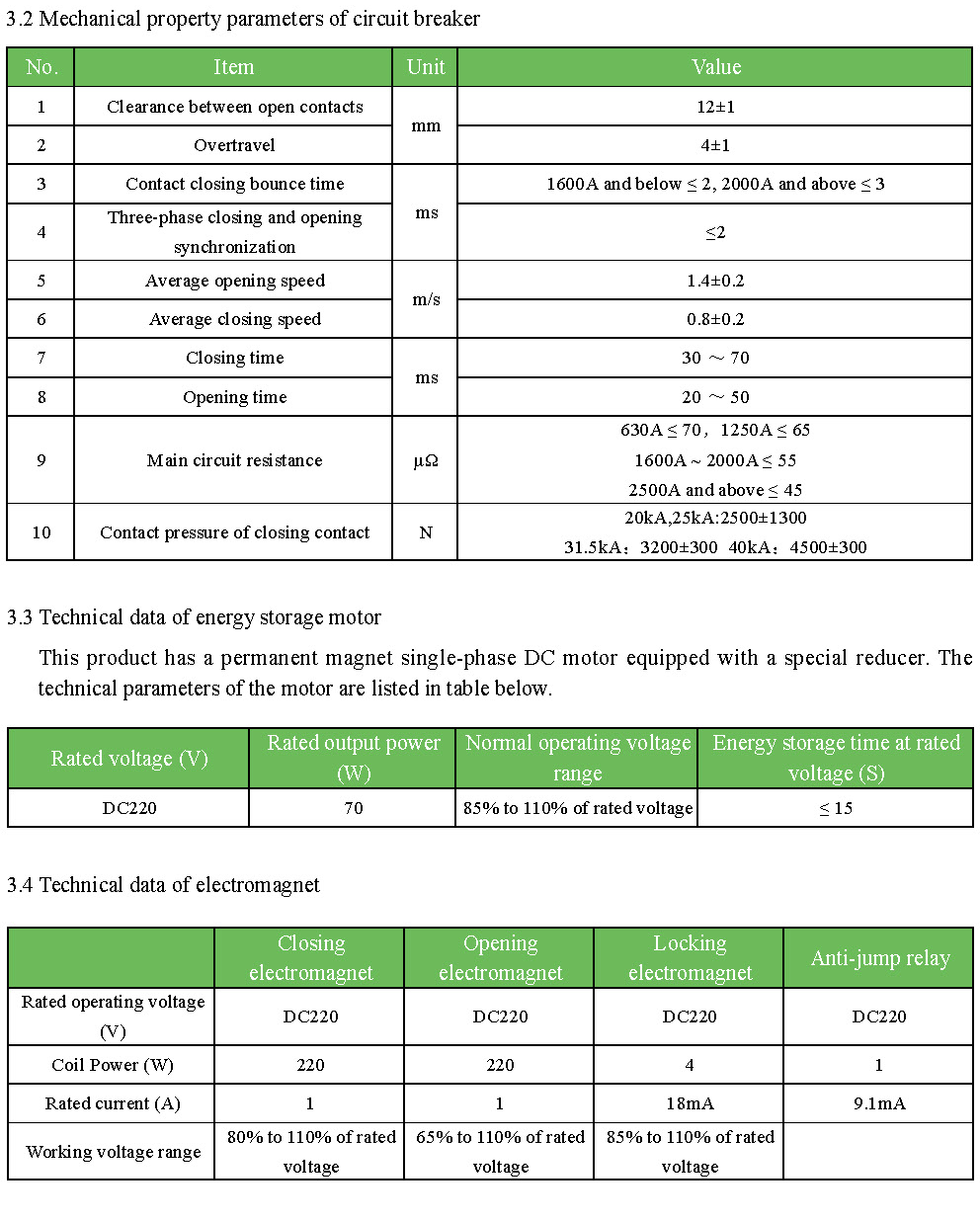

Technical Parameters
Conditions Operating
Normal Working Conditions4.
4.1.1 Ambient temperature: The max. temperature is +400C, and the min. temperature is -15°C (storage andtransport at -30'C are allowed).
4.1.2 Environmental humidity: The daily mean relative humidity is < 95%,the monthly mean relativehumidity is < 90%; the daily mean vapor pressure is < 2.2 x 10- 3MPa, and the monthly mean vaporpressure is< 1.8 x10-3 MPa:
4.13 The altitude does not exceed 1000m (customization is required if greater than 1000m)4.1.4 The earthquake intensity does not exceed 8 degrees,
4.1.5 There is no water drops, no flammable materials, no chemical corrosive gas and no severe vibration atthe site.
4.2 If the normal working conditions are not met, please contact the manufacturing unit

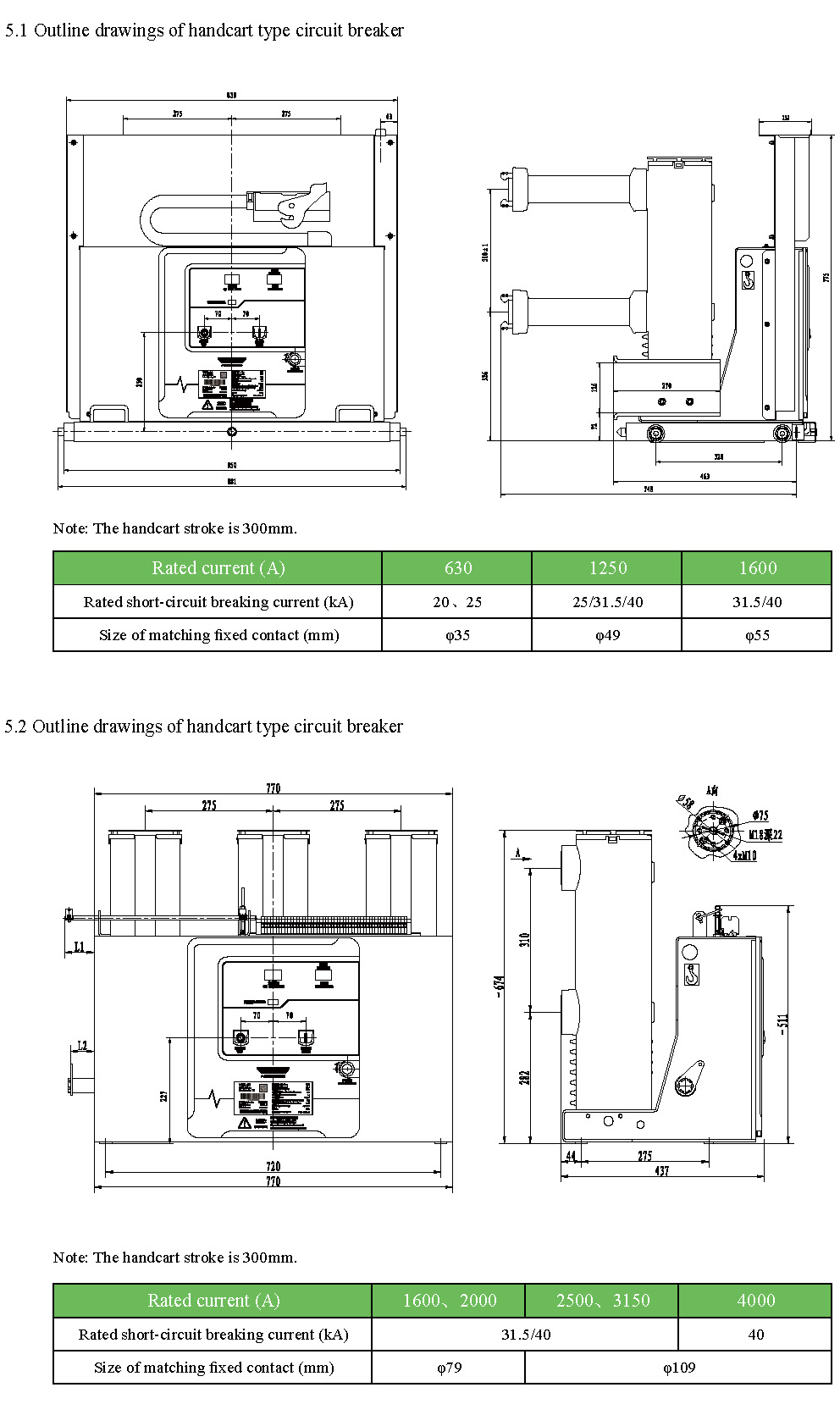

Outline and Installation Dimensions
Electrical Schematic Diagram
