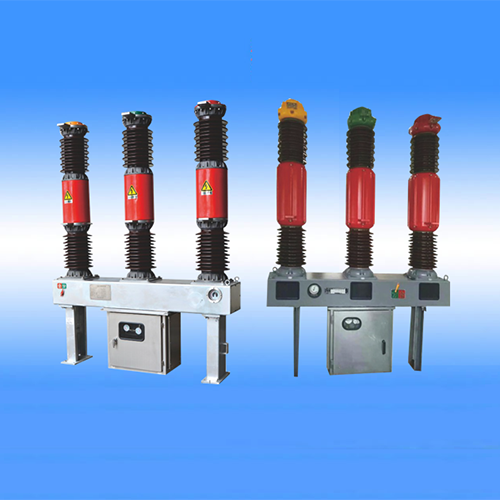

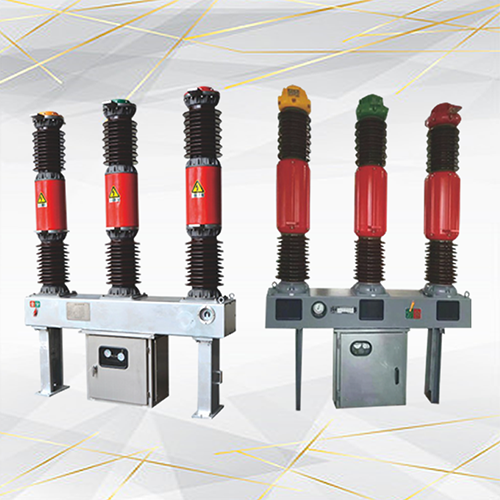

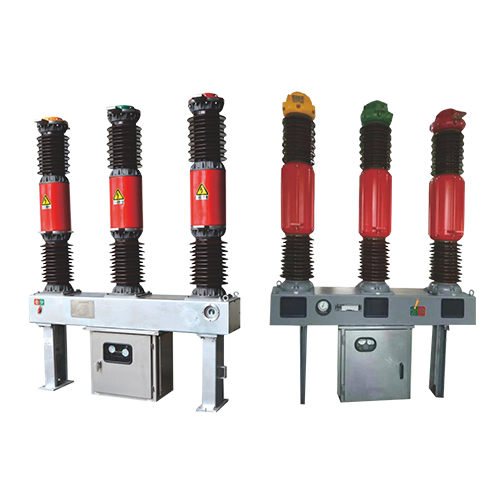

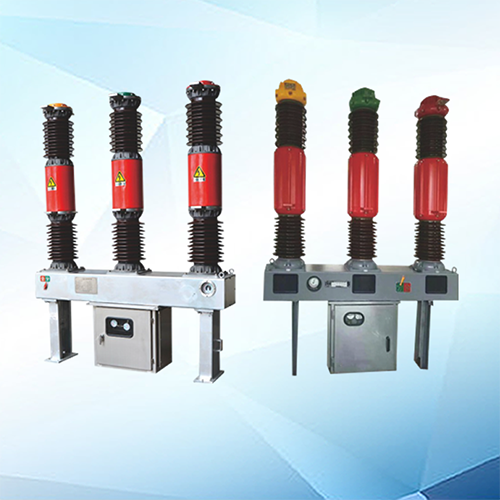

LW36-40.5
The LW36-40.5 is a professional outdoor high-voltage SF6 circuit breaker designed for 40.5kV (35kV level) power transmission and distribution systems. Manufactured in full compliance with IEC and international industrial standards, this circuit breaker is widely used in power substations, power plants, industrial power distribution systems and new energy power grid projects for reliable circuit switching, overload protection and short-circuit fault protection.
Adopting sulfur hexafluoride (SF6) gas as insulating and arc-extinguishing medium, the LW36-40.5 circuit breaker features excellent arc extinguishing capacity and strong dielectric performance. It applies a self-energy arc extinguishing structure, which ensures fast and stable breaking operation even under severe short-circuit conditions. Compared with traditional vacuum circuit breakers, this SF6 breaker has lower operating energy, smaller mechanical wear and higher operational safety.
Equipped with a high-precision spring operating mechanism, the LW36-40.5 outdoor circuit breaker realizes consistent closing and opening actions with low failure rate. The fully sealed and integrated structure effectively prevents dust, moisture and corrosive substances from entering the interior, making it highly adaptable to various complex outdoor environments, including high altitude, high humidity, coastal salt fog and severe cold weather.
This 40.5kV SF6 circuit breaker supports multiple current and level specifications to meet different engineering demands. It features simple structure, convenient installation and extremely low daily maintenance requirements, which greatly reduces later operation and maintenance costs for power grid projects. With stable mechanical performance, strong breaking capacity and long service life, the LW36-40.5 circuit breaker has become a mainstream preferred device for medium and high voltage power grid construction and renovation projects worldwide.
We provide genuine factory direct sales, customized technical parameters and complete after-sales service for global customers. All products have passed strict quality testing to ensure stable and reliable long-term operation of power systems.
Adopting sulfur hexafluoride (SF6) gas as insulating and arc-extinguishing medium, the LW36-40.5 circuit breaker features excellent arc extinguishing capacity and strong dielectric performance. It applies a self-energy arc extinguishing structure, which ensures fast and stable breaking operation even under severe short-circuit conditions. Compared with traditional vacuum circuit breakers, this SF6 breaker has lower operating energy, smaller mechanical wear and higher operational safety.
Equipped with a high-precision spring operating mechanism, the LW36-40.5 outdoor circuit breaker realizes consistent closing and opening actions with low failure rate. The fully sealed and integrated structure effectively prevents dust, moisture and corrosive substances from entering the interior, making it highly adaptable to various complex outdoor environments, including high altitude, high humidity, coastal salt fog and severe cold weather.
This 40.5kV SF6 circuit breaker supports multiple current and level specifications to meet different engineering demands. It features simple structure, convenient installation and extremely low daily maintenance requirements, which greatly reduces later operation and maintenance costs for power grid projects. With stable mechanical performance, strong breaking capacity and long service life, the LW36-40.5 circuit breaker has become a mainstream preferred device for medium and high voltage power grid construction and renovation projects worldwide.
We provide genuine factory direct sales, customized technical parameters and complete after-sales service for global customers. All products have passed strict quality testing to ensure stable and reliable long-term operation of power systems.
Product Details
Overview
LW36-40.5(W)/T2000-31.5 outdoor sulfur hexafluoride circuit breaker is an electrical device in the AC 50Hz three-phase power system. It is suitable for control and protection in the power system with a rated voltage of 40.5 kV. The internal or external current transformer can be used for measurement and protection.
Structural features
LW36-40.5 type sulfur hexafluoride circuit breaker is an outdoor porcelain bottle pillar structure, equipped with a CT35 type spring operating mechanism. The mechanism and the body are arranged in a "T" shape. The whole machine is small in size, light in weight, simple in structure, small in operation work, and easy to install and debug. The mechanical life is 10,000 times, suitable for frequent operation;
Adopting compressed air arc extinguishing chamber, the breaking performance is excellent, and the electrical life is up to 20 times;
The sealing performance is reliable, the static seal adopts the "O" type sealing ring structure, and the dynamic seal adopts the "V" type sealing ring with spring pressure compensation structure. The secondary terminal board of the transformer is produced by pressure injection technology, with strong anti-aging performance, ensuring an annual leakage rate of ≤0.5%;
The mounting frame and support are made of integral steel plates, using high-strength standard parts and high mechanical reliability;
The metering-grade iron core of the internal or external current transformer is made of microcrystalline alloy high magnetic conductivity material, and the accuracy level can reach 0.2 or 0.2S. Each phase of the product can be equipped with 2 to 4 current transformers.
Ordering instructions
Circuit breaker model and specifications;
Rated electrical parameters (voltage, current, breaking current, etc.)
Use environment conditions (ambient temperature, altitude, environmental pollution level);
Rated control circuit electrical parameters (rated voltage of energy storage motor, rated voltage of opening and closing coil); The name and number of spare parts, special equipment and tools required (need to be ordered separately) The wiring direction of the primary upper terminal.
LW36-40.5(W)/T2000-31.5 outdoor sulfur hexafluoride circuit breaker is an electrical device in the AC 50Hz three-phase power system. It is suitable for control and protection in the power system with a rated voltage of 40.5 kV. The internal or external current transformer can be used for measurement and protection.
Structural features
LW36-40.5 type sulfur hexafluoride circuit breaker is an outdoor porcelain bottle pillar structure, equipped with a CT35 type spring operating mechanism. The mechanism and the body are arranged in a "T" shape. The whole machine is small in size, light in weight, simple in structure, small in operation work, and easy to install and debug. The mechanical life is 10,000 times, suitable for frequent operation;
Adopting compressed air arc extinguishing chamber, the breaking performance is excellent, and the electrical life is up to 20 times;
The sealing performance is reliable, the static seal adopts the "O" type sealing ring structure, and the dynamic seal adopts the "V" type sealing ring with spring pressure compensation structure. The secondary terminal board of the transformer is produced by pressure injection technology, with strong anti-aging performance, ensuring an annual leakage rate of ≤0.5%;
The mounting frame and support are made of integral steel plates, using high-strength standard parts and high mechanical reliability;
The metering-grade iron core of the internal or external current transformer is made of microcrystalline alloy high magnetic conductivity material, and the accuracy level can reach 0.2 or 0.2S. Each phase of the product can be equipped with 2 to 4 current transformers.
Ordering instructions
Circuit breaker model and specifications;
Rated electrical parameters (voltage, current, breaking current, etc.)
Use environment conditions (ambient temperature, altitude, environmental pollution level);
Rated control circuit electrical parameters (rated voltage of energy storage motor, rated voltage of opening and closing coil); The name and number of spare parts, special equipment and tools required (need to be ordered separately) The wiring direction of the primary upper terminal.
