LW33-126KV

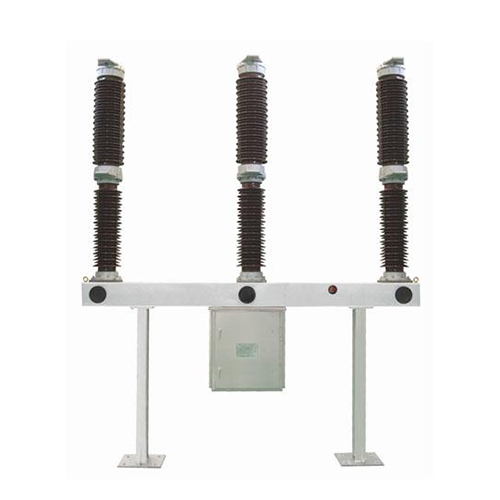

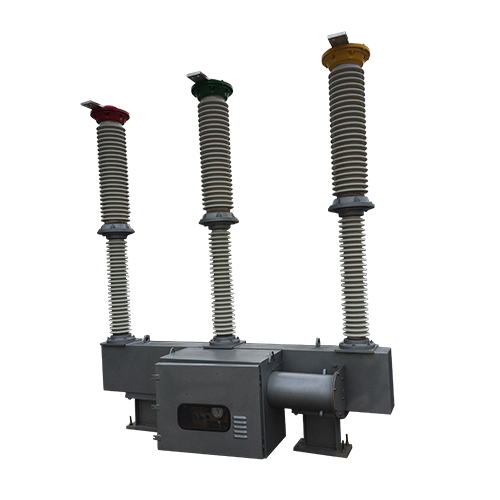

LW33-126kV is an outdoor three-phase AC high voltage SF6 circuit breaker designed for 126kV (110kV class) power transmission and distribution systems. It uses SF6 gas as insulation and arc extinguishing medium, equipped with hydraulic operating mechanism, and complies with IEC62271 and GB standards.
This breaker is mainly used in power substations, power plants, industrial power systems and grid projects to control and protect circuits. It can reliably switch load current and short-circuit current, with stable performance, low gas leakage rate, long mechanical life and strong outdoor adaptability.
It is widely used in 110kV/126kV power grid construction, renovation and new energy power stations, providing safe and reliable protection for high voltage power equipment.
This breaker is mainly used in power substations, power plants, industrial power systems and grid projects to control and protect circuits. It can reliably switch load current and short-circuit current, with stable performance, low gas leakage rate, long mechanical life and strong outdoor adaptability.
It is widely used in 110kV/126kV power grid construction, renovation and new energy power stations, providing safe and reliable protection for high voltage power equipment.
Product Details
Overview
1.1 Product model and name
LW33-126/T3150-40 high-voltage sulfur hexafluoride AC circuit breaker.
1.2 Main uses and scope of application
LW33-126/T3150-40 high-voltage sulfur hexafluoride AC circuit breaker is suitable for AC 50Hz, 110kV power systems. Trede high-voltage electrical appliances are control and protection equipment for power systems and can also be used as contact circuit breakers.
1.3 Relevant standards and main features
The circuit breaker complies with the requirements of GB1984-2003 "AC high-voltage circuit breakers" and IEC 6227 1-100 "High-voltage AC circuit breakers". The circuit breaker uses SF6 gas as insulation and arc extinguishing medium, adopts the self-energy arc extinguishing principle, and is equipped with a CT-30 spring operating mechanism. It has the characteristics of strong breaking capacity, low operating work, and high reliability.
2 Technical Parameters
2.1 Environmental Conditions
Normal environmental conditions for use shall comply with the following provisions:
a) Ambient air temperature -25℃ (-40℃) ~ +40℃;
b) Altitude ≤2500m (2000m);
c) Wind speed ≤34m/s;
d) Daily temperature difference ≤25℃;
e) Sunshine intensity ≤1000W/m;
f) Earthquake resistance level Earthquake intensity 8 degrees (horizontal acceleration 0.2g, vertical acceleration 0.1g);
g) Ice thickness ≤10mm;
h) Air pollution level Not exceeding level III in GB/T 5582;
i) Installation occasion
Note: The values in brackets are the parameters when the circuit breaker air pressure is 0.33MPa
1.1 Product model and name
LW33-126/T3150-40 high-voltage sulfur hexafluoride AC circuit breaker.
1.2 Main uses and scope of application
LW33-126/T3150-40 high-voltage sulfur hexafluoride AC circuit breaker is suitable for AC 50Hz, 110kV power systems. Trede high-voltage electrical appliances are control and protection equipment for power systems and can also be used as contact circuit breakers.
1.3 Relevant standards and main features
The circuit breaker complies with the requirements of GB1984-2003 "AC high-voltage circuit breakers" and IEC 6227 1-100 "High-voltage AC circuit breakers". The circuit breaker uses SF6 gas as insulation and arc extinguishing medium, adopts the self-energy arc extinguishing principle, and is equipped with a CT-30 spring operating mechanism. It has the characteristics of strong breaking capacity, low operating work, and high reliability.
2 Technical Parameters
2.1 Environmental Conditions
Normal environmental conditions for use shall comply with the following provisions:
a) Ambient air temperature -25℃ (-40℃) ~ +40℃;
b) Altitude ≤2500m (2000m);
c) Wind speed ≤34m/s;
d) Daily temperature difference ≤25℃;
e) Sunshine intensity ≤1000W/m;
f) Earthquake resistance level Earthquake intensity 8 degrees (horizontal acceleration 0.2g, vertical acceleration 0.1g);
g) Ice thickness ≤10mm;
h) Air pollution level Not exceeding level III in GB/T 5582;
i) Installation occasion
Note: The values in brackets are the parameters when the circuit breaker air pressure is 0.33MPa
